Sealed Power

Compare
  • FEDH997CP40 Cast Piston Set

    Sealed Power

    Part #: H997CP 40

    FEDH997CP40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.8750 IN
    pdm:Bore Diameter: 98.4 MM
    pdm:Compression Height: 1.876 IN
    pdm:Head Illustration: 23
    pdm:Head Type: Flat Head; DUROSHIELD~ skirt coated piston
    pdm:Minimum Clearance: See Piston Fitting Information on carton label
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Piston Material: Hypereutectic
    pdm:Piston Pin Outside Diameter: 1.0627 IN
    pdm:Piston Pin Outside Diameter: 26.993 MM
    pdm:Second Compression Ring Thickness: 0.0937 IN
    pdm:Top Compression Ring Thickness: 0.0937 IN
    pdm:line_code: FED
    pdm:internal_sku: FEDH997CP40
    $39.23
  • FEDH989CP20 Cast Piston Set

    Sealed Power

    Part #: H989CP 20

    FEDH989CP20 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.2500 IN
    pdm:Compression Height: 2.140 IN
    pdm:Head Illustration: 38
    pdm:Head Type: Flat Head w/1 valve relief - 8.0:1 C.R.; DUROSHIELD~ skirt coated piston
    pdm:Minimum Clearance: See Piston Fitting Information on carton label
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.020 IN
    pdm:Part Description: Engine Piston
    pdm:Piston Material: Hypereutectic
    pdm:Piston Pin Outside Diameter: 0.9894 IN
    pdm:Piston Pin Outside Diameter: 25.131 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Third Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0937 IN
    pdm:Weight W Pin Gram: 01130.+/- 00.
    pdm:line_code: FED
    pdm:internal_sku: FEDH989CP20
    $66.24

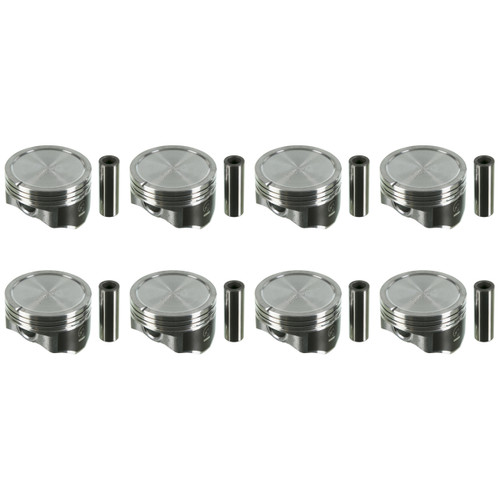

  • FEDH857CP.50MM Cast Piston Set

    Sealed Power

    Part #: H857CP .50MM

    FEDH857CP.50MM Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.0000 IN
    pdm:Bore Diameter: 101.6 MM
    pdm:Compression Height: 1.325 IN
    pdm:Dome Volume CC: Negative 007.0
    pdm:Head Illustration: 43
    pdm:Head Type: Recessed Head .048 deep x 3.340 dia.; DUROSHIELD~ skirt coated piston
    pdm:Minimum Clearance: See Piston Fitting Information on carton label
    pdm:Oil Ring Thickness: 3.00 MM
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.50 MM
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.03
    pdm:Pin Offset (MM): 0.762
    pdm:Pin Type: P
    pdm:Piston Material: Hypereutectic
    pdm:Piston Pin Outside Diameter: 0.9451 IN
    pdm:Piston Pin Outside Diameter: 24.006 MM
    pdm:Second Compression Ring Thickness: 1.50 MM
    pdm:Top Compression Ring Thickness: 1.50 MM
    pdm:Weight W Pin Gram: 00610.+/- 00.
    pdm:line_code: FED
    pdm:internal_sku: FEDH857CP.50MM
    $33.93

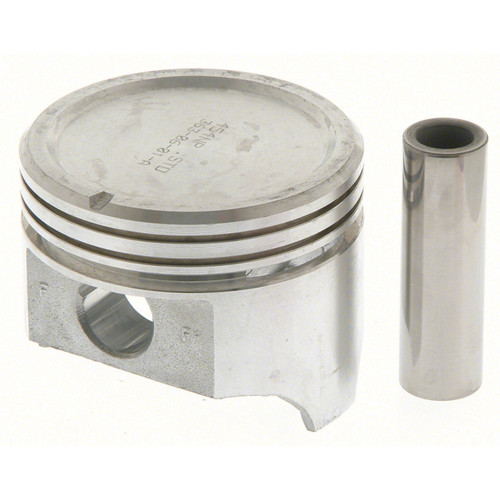

  • FEDH864CP.75MM Cast Piston Set

    Sealed Power

    Part #: H864CP .75MM

    FEDH864CP.75MM Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.5512 IN
    pdm:Bore Diameter: 90.2 MM
    pdm:Compression Height: 1.215 IN
    pdm:Dome Volume CC: Negative 016.0
    pdm:Head Illustration: 43
    pdm:Head Type: Recessed Head .150 deep x 3.050 dia.; DUROSHIELD~ skirt coated piston
    pdm:Minimum Clearance: See Piston Fitting Information on carton label
    pdm:Oil Ring Thickness: 3.00 MM
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.75 MM
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.05
    pdm:Pin Offset (MM): 1.27
    pdm:Pin Type: P
    pdm:Piston Material: Hypereutectic
    pdm:Piston Pin Outside Diameter: 0.8663 IN
    pdm:Piston Pin Outside Diameter: 22.004 MM
    pdm:Second Compression Ring Thickness: 1.50 MM
    pdm:Top Compression Ring Thickness: 1.50 MM
    pdm:Weight W Pin Gram: 00460.+/- 00.
    pdm:line_code: FED
    pdm:internal_sku: FEDH864CP.75MM
    $34.00

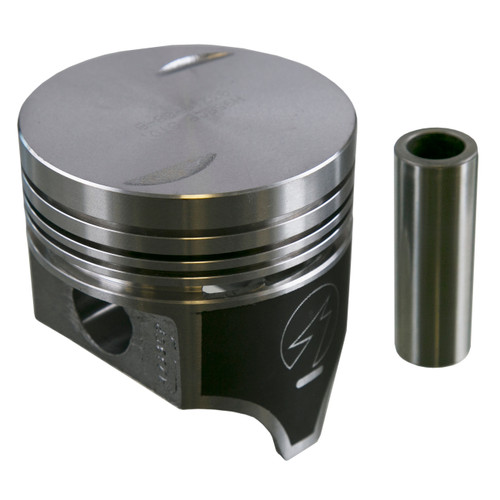

  • FEDH958CP30 Cast Piston Set

    Sealed Power

    Part #: H958CP 30

    FEDH958CP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.9375 IN
    pdm:Compression Height: 2.130 IN
    pdm:Head Illustration: 5
    pdm:Head Type: Flat Head w/2 valve reliefs - 8.0:1 C.R.; DUROSHIELD~ skirt coated piston
    pdm:Minimum Clearance: See Piston Fitting Information on carton label
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Piston Material: Hypereutectic
    pdm:Piston Pin Outside Diameter: 0.9894 IN
    pdm:Piston Pin Outside Diameter: 25.131 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Third Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0937 IN
    pdm:line_code: FED
    pdm:internal_sku: FEDH958CP30
    $36.18

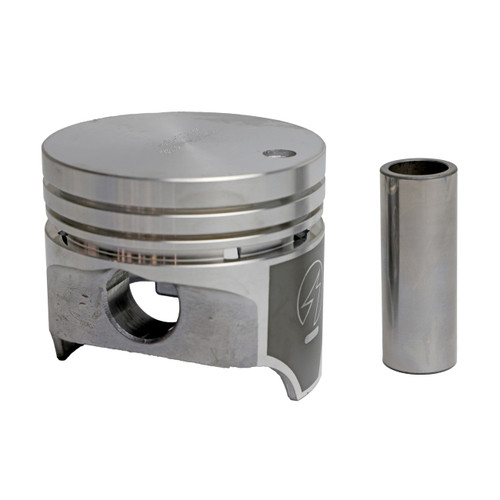

  • FEDH997CP30 Cast Piston Set

    Sealed Power

    Part #: H997CP 30

    FEDH997CP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.8750 IN
    pdm:Bore Diameter: 98.4 MM
    pdm:Compression Height: 1.876 IN
    pdm:Head Illustration: 23
    pdm:Head Type: Flat Head; DUROSHIELD~ skirt coated piston
    pdm:Minimum Clearance: See Piston Fitting Information on carton label
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Piston Material: Hypereutectic
    pdm:Piston Pin Outside Diameter: 1.0627 IN
    pdm:Piston Pin Outside Diameter: 26.993 MM
    pdm:Second Compression Ring Thickness: 0.0937 IN
    pdm:Top Compression Ring Thickness: 0.0937 IN
    pdm:line_code: FED
    pdm:internal_sku: FEDH997CP30
    $39.23

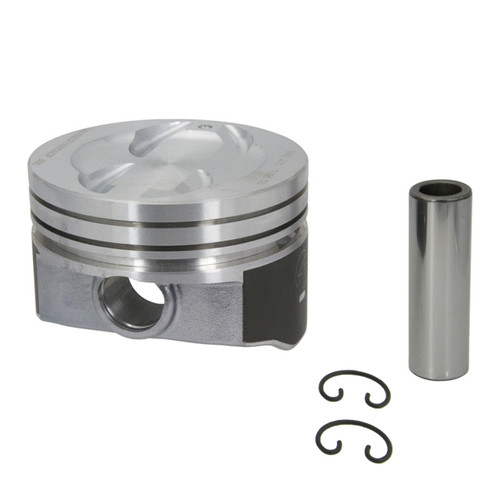

  • FEDH815DCP20 Cast Piston Set

    Sealed Power

    Part #: H815DCP 20

    FEDH815DCP20 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.0000 IN
    pdm:Compression Height: 1.550 IN
    pdm:Head Illustration: 29
    pdm:Head Type: Recessed Head .098" deep x 2.771 dia. w/4 valve reliefs; DUROSHIELD~ skirt coated piston
    pdm:Oil Ring Thickness: 3.00 MM
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.020 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Type: P or F
    pdm:Piston Material: Hypereutectic
    pdm:Second Compression Ring Thickness: 1.50 MM
    pdm:Top Compression Ring Thickness: 1.50 MM
    pdm:line_code: FED
    pdm:internal_sku: FEDH815DCP20
    $24.28
  • FEDH661CP60 Cast Piston Set

    Sealed Power

    Part #: H661CP 60

    FEDH661CP60 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.2500 IN
    pdm:Bore Diameter: 107.95 MM
    pdm:Compression Height: 1.625 IN
    pdm:Dome Volume CC: Negative 002.0
    pdm:Head Illustration: 5
    pdm:Head Type: Flat Head w/2 valve reliefs; Use E424K30 ring set for H661CP100; DUROSHIELD~ skirt coated piston
    pdm:Minimum Clearance: See Piston Fitting Information on carton label
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.060 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Hypereutectic
    pdm:Piston Pin Outside Diameter: 0.9893 IN
    pdm:Piston Pin Outside Diameter: 25.128 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:Weight W Pin Gram: 00730.+/- 00.
    pdm:line_code: FED
    pdm:internal_sku: FEDH661CP60
    $25.68
  • FEDH815DCP30 Cast Piston Set

    Sealed Power

    Part #: H815DCP 30

    FEDH815DCP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.0000 IN
    pdm:Compression Height: 1.550 IN
    pdm:Head Illustration: 29
    pdm:Head Type: Recessed Head .098" deep x 2.771 dia. w/4 valve reliefs; DUROSHIELD~ skirt coated piston
    pdm:Oil Ring Thickness: 3.00 MM
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Type: P or F
    pdm:Piston Material: Hypereutectic
    pdm:Second Compression Ring Thickness: 1.50 MM
    pdm:Top Compression Ring Thickness: 1.50 MM
    pdm:line_code: FED
    pdm:internal_sku: FEDH815DCP30
    $24.28

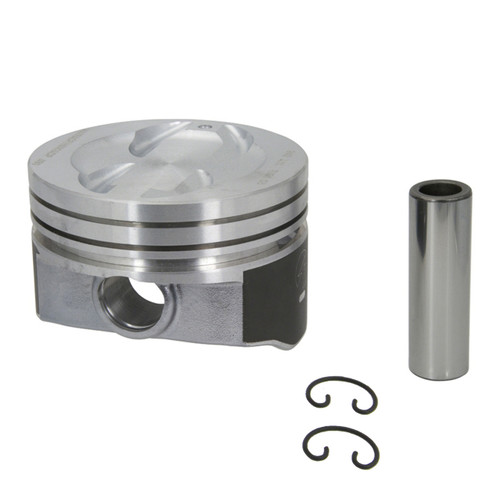

  • FEDH815DCP40 Cast Piston Set

    Sealed Power

    Part #: H815DCP 40

    FEDH815DCP40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.0000 IN
    pdm:Compression Height: 1.550 IN
    pdm:Head Illustration: 29
    pdm:Head Type: Recessed Head .098" deep x 2.771 dia. w/4 valve reliefs; DUROSHIELD~ skirt coated piston
    pdm:Oil Ring Thickness: 3.00 MM
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Type: P or F
    pdm:Piston Material: Hypereutectic
    pdm:Second Compression Ring Thickness: 1.50 MM
    pdm:Top Compression Ring Thickness: 1.50 MM
    pdm:line_code: FED
    pdm:internal_sku: FEDH815DCP40
    $24.28

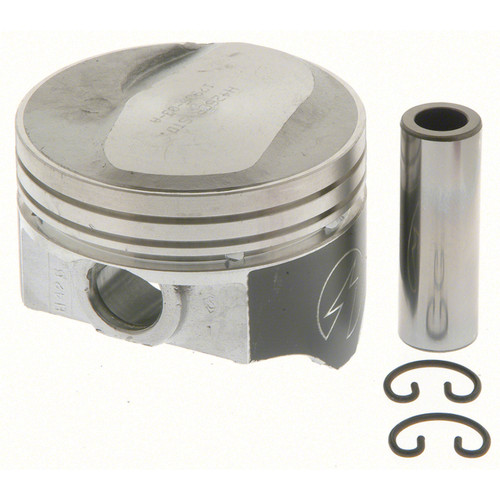

  • FEDH811CP40 Cast Piston Set

    Sealed Power

    Part #: H811CP 40

    FEDH811CP40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.9375 IN
    pdm:Compression Height: 2.125 IN
    pdm:Head Illustration: 56
    pdm:Head Type: Domed Head w/1 valve relief; DUROSHIELD~ skirt coated piston
    pdm:Minimum Clearance: See Piston Fitting Information on carton label
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Type: P
    pdm:Piston Material: Hypereutectic
    pdm:Piston Pin Outside Diameter: 0.9894 IN
    pdm:Piston Pin Outside Diameter: 25.131 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Third Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0937 IN
    pdm:Weight W Pin Gram: 00843.+/- 00.
    pdm:line_code: FED
    pdm:internal_sku: FEDH811CP40
    $41.77

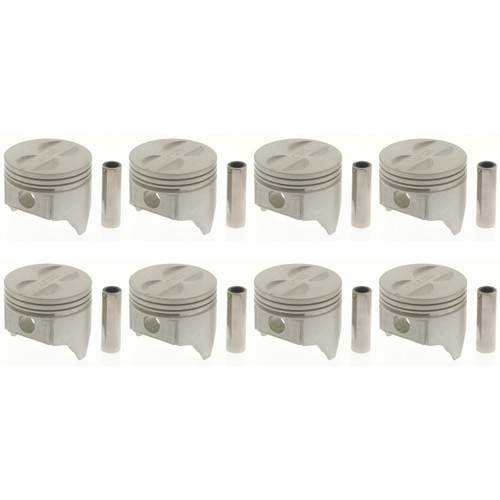

  • FEDH816CP30 Cast Piston Set

    Sealed Power

    Part #: H816CP 30

    FEDH816CP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.0000 IN
    pdm:Bore Diameter: 101.6 MM
    pdm:Compression Height: 1.595 IN
    pdm:Head Illustration: 26
    pdm:Head Type: Flat Head w/4 valve reliefs; DUROSHIELD~ skirt coated piston
    pdm:Minimum Clearance: See Piston Fitting Information on carton label
    pdm:Oil Ring Thickness: 4.00 MM
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Hypereutectic
    pdm:Piston Pin Outside Diameter: 0.9122 IN
    pdm:Piston Pin Outside Diameter: 23.17 MM
    pdm:Second Compression Ring Thickness: 1.50 MM
    pdm:Top Compression Ring Thickness: 1.50 MM
    pdm:Weight W Pin Gram: 00731.+/- 00.
    pdm:line_code: FED
    pdm:internal_sku: FEDH816CP30
    $26.75
