Sealed Power

Compare

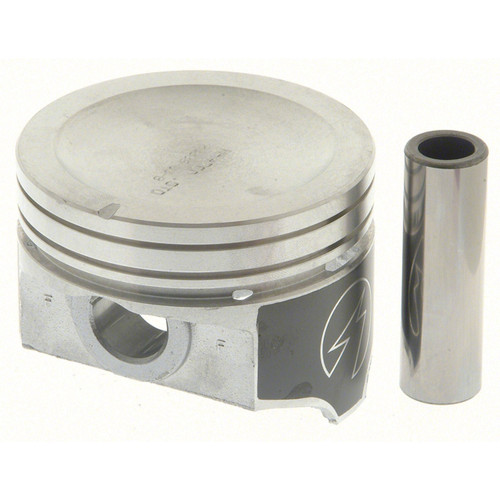

  • FED536NP30 Cast Piston Set

    Sealed Power

    Part #: 536NP 30

    FED536NP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.7360 IN
    pdm:Bore Diameter: 94.9 MM
    pdm:Compression Height: 1.540 IN
    pdm:Head Illustration: 29
    pdm:Head Type: Recessed Head .062 deep x 3.130 dia.
    pdm:Minimum Clearance: 0.001 @ 1.800 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9275 IN
    pdm:Piston Pin Outside Diameter: 23.559 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED536NP30
    $21.39

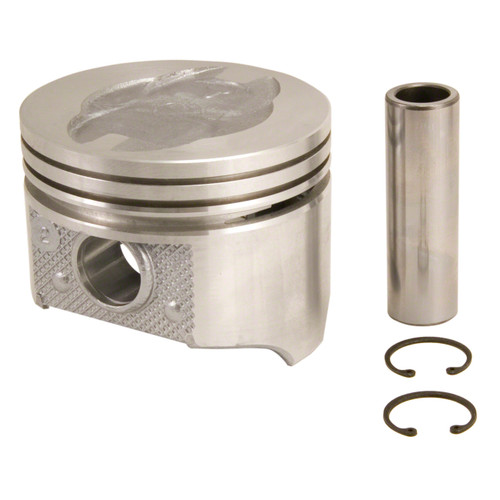

  • FED88NP30 Cast Piston Set

    Sealed Power

    Part #: 88NP 30

    FED88NP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.1250 IN
    pdm:Bore Diameter: 79.2 MM
    pdm:Compression Height: 2.167 IN
    pdm:Head Illustration: 23
    pdm:Head Type: Flat Head - 6.7:1 C.R.
    pdm:Minimum Clearance: 0.0015 @ bottom of skirt
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.812 IN
    pdm:Piston Pin Outside Diameter: 20.625 MM
    pdm:Second Compression Ring Thickness: 0.0937 IN
    pdm:Top Compression Ring Thickness: 0.0937 IN
    pdm:line_code: FED
    pdm:internal_sku: FED88NP30
    $38.95

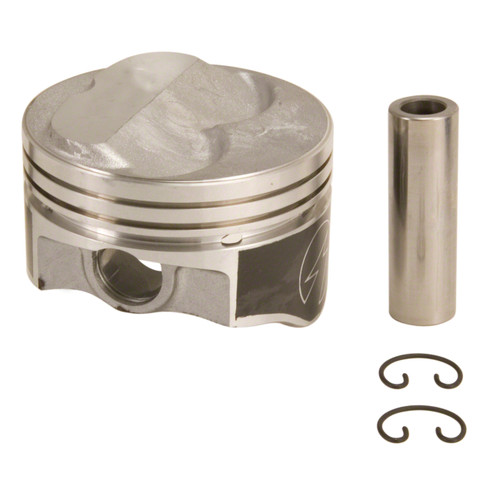

  • FED470AP30 Cast Piston Set

    Sealed Power

    Part #: 470AP 30

    FED470AP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.7500 IN
    pdm:Bore Diameter: 95.25 MM
    pdm:Compression Height: 1.633 IN
    pdm:Head Type: D Shaped Recessed Head .178 deep
    pdm:Minimum Clearance: 0.001 @ 2.640 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9313 IN
    pdm:Piston Pin Outside Diameter: 23.655 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED470AP30
    $29.97

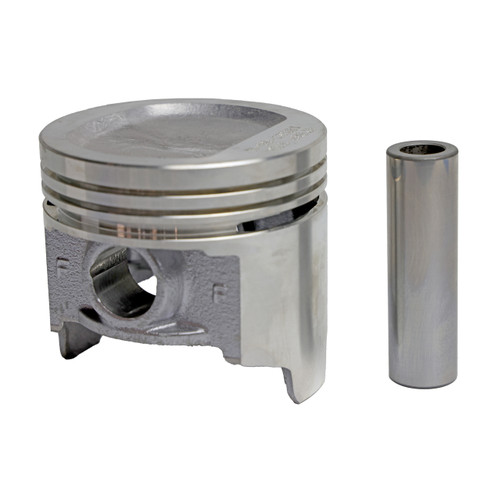

  • FED92P30 Cast Piston Set

    Sealed Power

    Part #: 92P 30

    FED92P30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.7500 IN
    pdm:Bore Diameter: 95.3 MM
    pdm:Compression Height: 2.030 IN
    pdm:Head Illustration: 23
    pdm:Head Type: Flat Head - 7.8:1 C.R.
    pdm:Minimum Clearance: 0.001 @ 3.430 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.078
    pdm:Pin Offset (MM): 1.981
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9272 IN
    pdm:Piston Pin Outside Diameter: 23.551 MM
    pdm:Second Compression Ring Thickness: 0.0937 IN
    pdm:Top Compression Ring Thickness: 0.0937 IN
    pdm:line_code: FED
    pdm:internal_sku: FED92P30
    $56.60
  • FED466NP30 Cast Piston Set

    Sealed Power

    Part #: 466NP 30

    FED466NP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.3510 IN
    pdm:Bore Diameter: 110.5 MM
    pdm:Compression Height: 1.595 IN
    pdm:Head Illustration: 43
    pdm:Head Type: Recessed Head .150 deep x 3.250 dia. - 7.9:1 C.R.
    pdm:Minimum Clearance: 0.001 @ 2.300 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9804 IN
    pdm:Piston Pin Outside Diameter: 24.902 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED466NP30
    $48.19

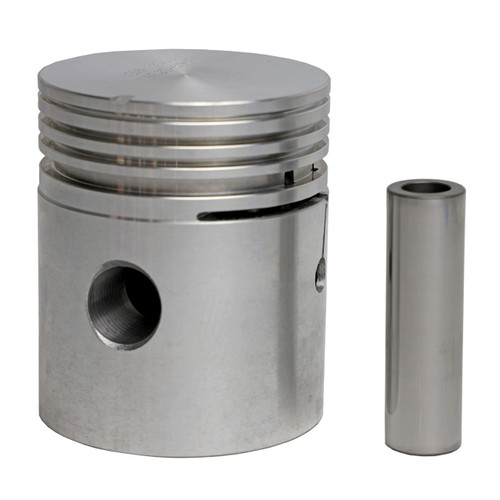

  • FED69P60 Cast Piston Set

    Sealed Power

    Part #: 69P 60

    FED69P60 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.1875 IN
    pdm:Compression Height: 1.905 IN
    pdm:Head Illustration: 42
    pdm:Head Type: Domed Head - 9.8:1 C.R.
    pdm:Minimum Clearance: 0.0005 @ bottom of skirt
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.060 IN
    pdm:Part Description: Engine Piston
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9999 IN
    pdm:Piston Pin Outside Diameter: 25.397 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED69P60
    $51.31
  • FED392AP30 Cast Piston Set

    Sealed Power

    Part #: 392AP 30

    FED392AP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.3125 IN
    pdm:Bore Diameter: 109.5 MM
    pdm:Compression Height: 1.955 IN
    pdm:Head Illustration: 28
    pdm:Head Type: Recessed Head .230 deep x 3.610 dia.
    pdm:Minimum Clearance: 0.0015 @ 3.100 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9999 IN
    pdm:Piston Pin Outside Diameter: 25.397 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED392AP30
    $47.95
  • FED454NP40 Cast Piston Set

    Sealed Power

    Part #: 454NP 40

    FED454NP40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.7360 IN
    pdm:Bore Diameter: 94.9 MM
    pdm:Compression Height: 1.540 IN
    pdm:Head Illustration: 43
    pdm:Head Type: Recessed Head .110 deep x 3.115 dia. - 8.5:1 C.R.
    pdm:Minimum Clearance: 0.001 @ 2.200 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9275 IN
    pdm:Piston Pin Outside Diameter: 23.559 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED454NP40
    $17.02
  • FED454NP30 Cast Piston Set

    Sealed Power

    Part #: 454NP 30

    FED454NP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.7360 IN
    pdm:Bore Diameter: 94.9 MM
    pdm:Compression Height: 1.540 IN
    pdm:Head Illustration: 43
    pdm:Head Type: Recessed Head .110 deep x 3.115 dia. - 8.5:1 C.R.
    pdm:Minimum Clearance: 0.001 @ 2.200 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9275 IN
    pdm:Piston Pin Outside Diameter: 23.559 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED454NP30
    $17.02
  • FED381NP40 Cast Piston Set

    Sealed Power

    Part #: 381NP 40

    FED381NP40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.0500 IN
    pdm:Bore Diameter: 101.6 MM
    pdm:Compression Height: 1.660 IN
    pdm:Head Illustration: 31
    pdm:Head Type: Recessed Head .097 deep x 2.620 dia. w/4 valve pockets
    pdm:Minimum Clearance: 0.0015 @ 2.630 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9753 IN
    pdm:Piston Pin Outside Diameter: 24.773 MM
    pdm:Second Compression Ring Thickness: 0.0937 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED381NP40
    $25.86
  • FED368P40 Cast Piston Set

    Sealed Power

    Part #: 368P 40

    FED368P40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.1875 IN
    pdm:Bore Diameter: 106.4 MM
    pdm:Compression Height: 1.947 IN
    pdm:Head Illustration: 28
    pdm:Head Type: Recessed Head .090 deep x 3.500 dia. - 9.9:1 C.R.
    pdm:Minimum Clearance: 0.0015 @ bottom of skirt
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9997 IN
    pdm:Piston Pin Outside Diameter: 25.392 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED368P40
    $55.19
  • FED400AP40 Cast Piston Set

    Sealed Power

    Part #: 400AP 40

    FED400AP40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.1250 IN
    pdm:Bore Diameter: 104.78 MM
    pdm:Compression Height: 1.540 IN
    pdm:Dome Volume CC: Negative 025.0
    pdm:Head Illustration: 28
    pdm:Head Type: Recessed Head .160 deep x 3.445 dia. - 8.5:1 C.R.
    pdm:Minimum Clearance: 0.001 @ 1.830 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.03
    pdm:Pin Offset (MM): 0.762
    pdm:Pin Type: P
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9275 IN
    pdm:Piston Pin Outside Diameter: 23.559 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:Weight W Pin Gram: 00785.+/- 00.
    pdm:line_code: FED
    pdm:internal_sku: FED400AP40
    $20.53
