Sealed Power

Compare
  • FED454NP Cast Piston Set

    Sealed Power

    Part #: 454NP

    FED454NP Cast Piston Set

    Engine Make: Sealed Power
    pdm:Assembly Lubricant Included: No
    pdm:Head Illustration: 43
    pdm:Piston Pin Outside Diameter: 0.9275 IN
    pdm:Bore Diameter: 3.7360 IN
    pdm:line_code: FED
    pdm:Piston Pin Outside Diameter: 23.559 MM
    pdm:Head Type: Recessed Head .110 deep x 3.115 dia. - 8.5:1 C.R.
    pdm:Pin Offset (Inch): 0.06
    pdm:Bore Diameter: 94.9 MM
    pdm:Oversized: No
    pdm:Minimum Clearance: 0.001 @ 2.200 from top of head
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Pin Offset (MM): 1.524
    pdm:Part Description: Engine Piston
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:Piston Material: Cast Aluminum
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Compression Height: 1.540 IN
    pdm:internal_sku: FED454NP
    pdm:Grade Type: Premium
    pdm:Piston Head Type: Recessed
    pdm:Prop 65 Label (Yes/No): No
    $21.76
  • FED310AP Cast Piston Set

    Sealed Power

    Part #: 310AP

    FED310AP Cast Piston Set

    Engine Make: Sealed Power
    pdm:Part Description: Engine Piston
    pdm:Assembly Lubricant Included: No
    pdm:Oversized: No
    pdm:Compression Height: 1.654 IN
    pdm:Piston Pin Outside Diameter: 0.9275 IN
    pdm:Bore Diameter: 4.0000 IN
    pdm:Piston Material: Cast Aluminum
    pdm:Top Compression Ring Thickness: 0.078125 IN
    pdm:line_code: FED
    pdm:Second Compression Ring Thickness: 0.078125 IN
    pdm:internal_sku: FED310AP
    pdm:Grade Type: Premium
    pdm:Prop 65 Label (Yes/No): No
    $25.20
  • FED2785PN Engine Piston

    Sealed Power

    Part #: 2785PN

    FED2785PN Engine Piston

    Engine Make: Sealed Power
    pdm:Oil Ring Thickness: 3.00 MM
    pdm:Assembly Lubricant Included: No
    pdm:Oversized: No
    pdm:Piston Material: Cast Aluminum
    pdm:Compression Height: 49.60 MM
    pdm:Cylinder Bore Diameter: 103.00 MM
    pdm:Part Description: Engine Piston
    pdm:Top Compression Ring Thickness: 3.00 MM
    pdm:Second Compression Ring Thickness: 2.00 MM
    pdm:line_code: FED
    pdm:internal_sku: FED2785PN
    pdm:Piston Pin Outside Diameter: 34.50 MM
    pdm:Piston Head Type: Bowl
    pdm:Grade Type: Premium
    pdm:Prop 65 Label (Yes/No): No
    $73.23

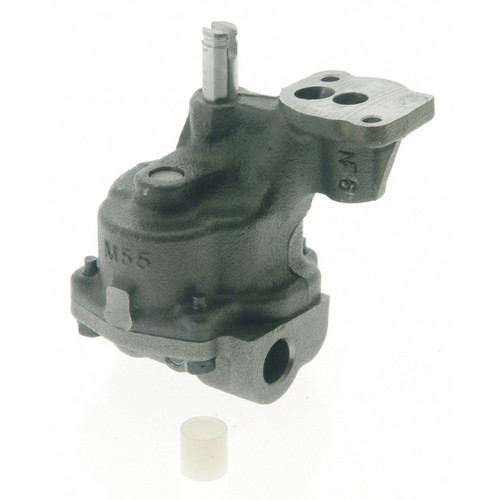

  • FED224-4146 Oil Pump

    Sealed Power

    Part #: 224-4146

    FED224-4146 Oil Pump

    Engine Make: Sealed Power
    pdm:Drive Type: Drive Shaft
    pdm:Engine Family: Small Block
    pdm:Design Feature 1: 5/8" inlet
    pdm:Gasket Or Seal Included: No
    pdm:Grade Type: Standard Replacement
    pdm:Mounting Hole Diameter: 6.35 MM
    pdm:Housing Material: Cast Iron
    pdm:Mounting Hole Quantity: 2
    pdm:Height: 4.150 IN
    pdm:Mounting Hole Diameter: 0.250 IN
    pdm:Part Description: Engine Oil Pump
    pdm:Oil Pump Type: Gear
    pdm:Oil Pump Pressure Type: Standard Pressure
    pdm:Oil Pump Volume Type: Standard Volume
    pdm:line_code: FED
    pdm:Height: 105.48 MM
    pdm:Manufacture: Chevrolet
    pdm:Width: 3.200 IN
    pdm:Width: 82.47 MM
    pdm:internal_sku: FED224-4146
    pdm:Prop 65 Label (Yes/No): No
    pdm:Washers Included: No
    pdm:Gear Material: Steel
    pdm:Drive Shaft Included: No
    pdm:Gears Included: Yes
    pdm:Cotter Pin Included: No
    pdm:Guide Included: No
    pdm:Cover Material: Cast Iron
    pdm:Inlet Size (in): 0.5
    pdm:Inlet Size (mm): 13
    pdm:Bolts Included: No
    pdm:Bushing Included: No
    pdm:O-Ring Included: No
    pdm:Governor Spinner Included: No
    pdm:Finish: Rust Preventative
    pdm:Nylon Bushing Included: No
    pdm:Pickup Screen Included: No
    pdm:Intermediate Shaft Included: No
    pdm:Alternate Pressure Springs Included: No
    pdm:Pickup Tube Diameter: 0.5 IN
    pdm:Adjustable Bypass Pressure: No
    pdm:Pump Cover Included: Yes
    pdm:Pickup Tube Diameter: 13.00 MM
    pdm:Spacer Included: No
    pdm:Shaft Material: Not Applicable
    pdm:Timing Cover Included: No
    $48.16
  • FED224-4143 Oil Pump

    Sealed Power

    Part #: 224-4143

    FED224-4143 Oil Pump

    Engine Make: Sealed Power
    pdm:Drive Type: Drive Shaft
    pdm:Drive Shaft Included: No
    pdm:Engine Family: Small Block
    pdm:Gasket Or Seal Included: No
    pdm:Grade Type: Improved Design
    pdm:Additional Volume Over Stock Percentage: 25
    pdm:Housing Material: Cast Iron
    pdm:Height: 112.54 MM
    pdm:Manufacture: Chevrolet
    pdm:Mounting Hole Diameter: 0.250 IN
    pdm:Height: 4.430 IN
    pdm:Mounting Hole Diameter: 6.35 MM
    pdm:Oil Pump Pressure Type: Standard Pressure
    pdm:Note 2: Requires 224-6146E shaft
    pdm:Part Description: Engine Oil Pump
    pdm:line_code: FED
    pdm:Oil Pump Volume Type: High Volume
    pdm:Width: 81.03 MM
    pdm:Oil Pump Type: Gear
    pdm:Width: 3.190 IN
    pdm:internal_sku: FED224-4143
    pdm:Design Feature 1: 5/8" inlet
    pdm:Mounting Hole Quantity: 2
    pdm:Prop 65 Label (Yes/No): No
    pdm:Adjustable Bypass Pressure: No
    pdm:Alternate Pressure Springs Included: No
    pdm:Cover Material: Cast Iron
    pdm:Gear Material: Steel
    pdm:Bushing Included: No
    pdm:Cotter Pin Included: No
    pdm:Gears Included: Yes
    pdm:Finish: Rust Preventative
    pdm:Bolts Included: No
    pdm:Inlet Size (in): 0.5
    pdm:Governor Spinner Included: No
    pdm:Guide Included: No
    pdm:Inlet Size (mm): 13
    pdm:Intermediate Shaft Included: No
    pdm:Nylon Bushing Included: No
    pdm:Pump Cover Included: Yes
    pdm:Spacer Included: No
    pdm:O-Ring Included: No
    pdm:Timing Cover Included: No
    pdm:Shaft Material: Not Applicable
    pdm:Washers Included: No
    pdm:Pickup Screen Included: No
    pdm:Pickup Tube Diameter: 13.00 MM
    pdm:Pickup Tube Diameter: 0.5 IN
    $75.58

  • Sealed Power

    Part #: L2262F30

    Sealed Power L2262F30

    Engine Make: Sealed Power
    $66.62
