Federal-Mogul

(Showing 12 of 335)

Federal-Mogul Parts at Northern Auto Parts

Enhance your vehicle's performance with our selection of Federal-Mogul parts, known for top-notch quality and durability, complimenting our engine kit selection.

Northern Auto Parts offers a wide range of Federal-Mogul components, from engine bearings and gaskets to pistons and piston rings, ensuring your vehicle gets what it needs to runs smoothly and efficiently. Whether you're working on a classic restoration or maintaining your daily driver, our Federal-Mogul inventory has everything you need to keep your engine in peak condition.

Compare
Show 12 24 36 48 96

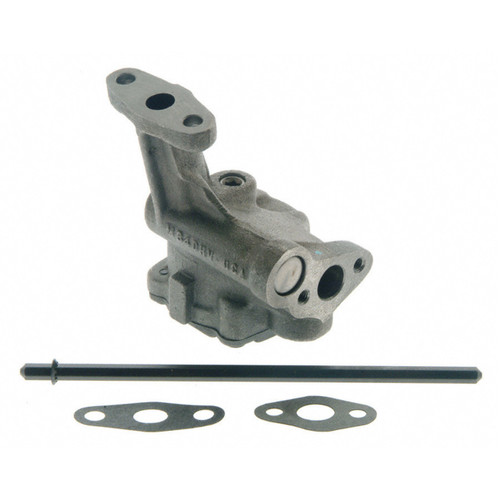

  • FED224-41144V Oil Pump

    Sealed Power

    Part #: 224-41144V

    FED224-41144V Oil Pump

    Engine Make: Sealed Power
    pdm:Grade Type: Improved Design
    pdm:Height: 149.21 MM
    pdm:Gasket Or Seal Included: Yes
    pdm:Housing Material: Cast Iron
    pdm:Mounting Hole Diameter: 9.52 MM
    pdm:Drive Type: Drive Shaft
    pdm:Additional Volume Over Stock Percentage: 25
    pdm:Height: 5.670 IN
    pdm:Drive Shaft Included: Yes
    pdm:Mounting Hole Quantity: 2
    pdm:Mounting Hole Diameter: 0.375 IN
    pdm:Oil Pump Type: Gear
    pdm:Pickup Screen Diameter: 18.94 MM
    pdm:Pickup Screen Diameter: 0.740 IN
    pdm:Oil Pump Pressure Type: Standard Pressure
    pdm:line_code: FED
    pdm:Oil Pump Volume Type: High Volume
    pdm:Width: 108.62 MM
    pdm:Width: 4.270 IN
    pdm:Part Description: Engine Oil Pump
    pdm:internal_sku: FED224-41144V
    pdm:Prop 65 Label (Yes/No): No
    pdm:Adjustable Bypass Pressure: No
    pdm:Bolts Included: No
    pdm:Gear Material: Steel
    pdm:Alternate Pressure Springs Included: No
    pdm:Gears Included: Yes
    pdm:Bushing Included: No
    pdm:Finish: Rust Preventative
    pdm:Cotter Pin Included: No
    pdm:Guide Included: No
    pdm:Intermediate Shaft Included: Yes
    pdm:Inlet Size (in): 0.75
    pdm:Cover Material: Cast Iron
    pdm:Governor Spinner Included: No
    pdm:Inlet Size (mm): 19
    pdm:Nylon Bushing Included: No
    pdm:O-Ring Included: No
    pdm:Pickup Tube Diameter: 0.75 IN
    pdm:Shaft Material: Steel
    pdm:Pickup Screen Included: No
    pdm:Pump Cover Included: Yes
    pdm:Washers Included: No
    pdm:Pickup Tube Diameter: 19.00 MM
    pdm:Timing Cover Included: No
    pdm:Spacer Included: No
    $166.72
  • FED224-4143 Oil Pump

    Sealed Power

    Part #: 224-4143

    FED224-4143 Oil Pump

    Engine Make: Sealed Power
    pdm:Drive Type: Drive Shaft
    pdm:Drive Shaft Included: No
    pdm:Engine Family: Small Block
    pdm:Gasket Or Seal Included: No
    pdm:Grade Type: Improved Design
    pdm:Additional Volume Over Stock Percentage: 25
    pdm:Housing Material: Cast Iron
    pdm:Height: 112.54 MM
    pdm:Manufacture: Chevrolet
    pdm:Mounting Hole Diameter: 0.250 IN
    pdm:Height: 4.430 IN
    pdm:Mounting Hole Diameter: 6.35 MM
    pdm:Oil Pump Pressure Type: Standard Pressure
    pdm:Note 2: Requires 224-6146E shaft
    pdm:Part Description: Engine Oil Pump
    pdm:line_code: FED
    pdm:Oil Pump Volume Type: High Volume
    pdm:Width: 81.03 MM
    pdm:Oil Pump Type: Gear
    pdm:Width: 3.190 IN
    pdm:internal_sku: FED224-4143
    pdm:Design Feature 1: 5/8" inlet
    pdm:Mounting Hole Quantity: 2
    pdm:Prop 65 Label (Yes/No): No
    pdm:Adjustable Bypass Pressure: No
    pdm:Alternate Pressure Springs Included: No
    pdm:Cover Material: Cast Iron
    pdm:Gear Material: Steel
    pdm:Bushing Included: No
    pdm:Cotter Pin Included: No
    pdm:Gears Included: Yes
    pdm:Finish: Rust Preventative
    pdm:Bolts Included: No
    pdm:Inlet Size (in): 0.5
    pdm:Governor Spinner Included: No
    pdm:Guide Included: No
    pdm:Inlet Size (mm): 13
    pdm:Intermediate Shaft Included: No
    pdm:Nylon Bushing Included: No
    pdm:Pump Cover Included: Yes
    pdm:Spacer Included: No
    pdm:O-Ring Included: No
    pdm:Timing Cover Included: No
    pdm:Shaft Material: Not Applicable
    pdm:Washers Included: No
    pdm:Pickup Screen Included: No
    pdm:Pickup Tube Diameter: 13.00 MM
    pdm:Pickup Tube Diameter: 0.5 IN
    $75.58
  • FED224-4146 Oil Pump

    Sealed Power

    Part #: 224-4146

    FED224-4146 Oil Pump

    Engine Make: Sealed Power
    pdm:Drive Type: Drive Shaft
    pdm:Engine Family: Small Block
    pdm:Design Feature 1: 5/8" inlet
    pdm:Gasket Or Seal Included: No
    pdm:Grade Type: Standard Replacement
    pdm:Mounting Hole Diameter: 6.35 MM
    pdm:Housing Material: Cast Iron
    pdm:Mounting Hole Quantity: 2
    pdm:Height: 4.150 IN
    pdm:Mounting Hole Diameter: 0.250 IN
    pdm:Part Description: Engine Oil Pump
    pdm:Oil Pump Type: Gear
    pdm:Oil Pump Pressure Type: Standard Pressure
    pdm:Oil Pump Volume Type: Standard Volume
    pdm:line_code: FED
    pdm:Height: 105.48 MM
    pdm:Manufacture: Chevrolet
    pdm:Width: 3.200 IN
    pdm:Width: 82.47 MM
    pdm:internal_sku: FED224-4146
    pdm:Prop 65 Label (Yes/No): No
    pdm:Washers Included: No
    pdm:Gear Material: Steel
    pdm:Drive Shaft Included: No
    pdm:Gears Included: Yes
    pdm:Cotter Pin Included: No
    pdm:Guide Included: No
    pdm:Cover Material: Cast Iron
    pdm:Inlet Size (in): 0.5
    pdm:Inlet Size (mm): 13
    pdm:Bolts Included: No
    pdm:Bushing Included: No
    pdm:O-Ring Included: No
    pdm:Governor Spinner Included: No
    pdm:Finish: Rust Preventative
    pdm:Nylon Bushing Included: No
    pdm:Pickup Screen Included: No
    pdm:Intermediate Shaft Included: No
    pdm:Alternate Pressure Springs Included: No
    pdm:Pickup Tube Diameter: 0.5 IN
    pdm:Adjustable Bypass Pressure: No
    pdm:Pump Cover Included: Yes
    pdm:Pickup Tube Diameter: 13.00 MM
    pdm:Spacer Included: No
    pdm:Shaft Material: Not Applicable
    pdm:Timing Cover Included: No
    $48.16

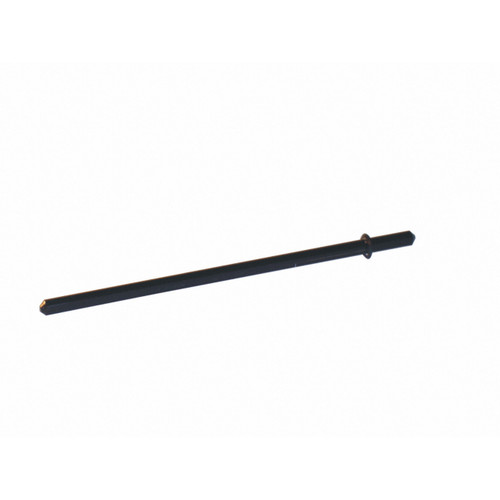

  • FED224-61143 Oil Pump Int Shaft

    Sealed Power

    Part #: 224-61143

    FED224-61143 Oil Pump Int Shaft

    Engine Make: Sealed Power
    pdm:Grade Type: Premium
    pdm:Hardunit: RC
    pdm:Engine Family: Small Block
    pdm:Hardness: 58
    pdm:Part Description: Engine Oil Pump Intermediate Shaft
    pdm:Manufacture: Ford
    pdm:Shaft Diameter: 7.9 MM
    pdm:Length: 8.190 IN
    pdm:internal_sku: FED224-61143
    pdm:line_code: FED
    pdm:Shaft Diameter: 0.311 IN
    pdm:Length: 208.0 MM
    pdm:Shaft Material: Low Carbon Steel
    pdm:Prop 65 Label (Yes/No): No
    $11.17

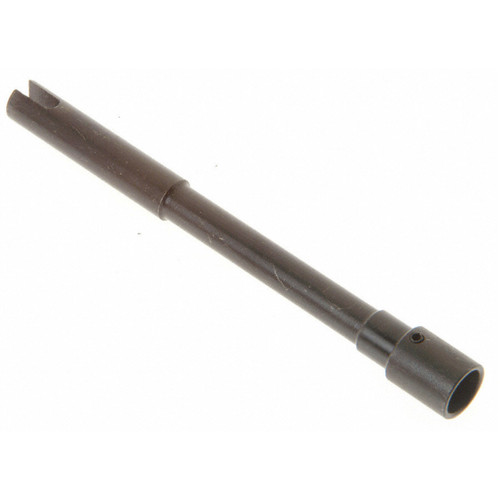

  • FED224-6146E Oil Pump Int Shaft

    Sealed Power

    Part #: 224-6146E

    FED224-6146E Oil Pump Int Shaft

    Engine Make: Sealed Power
    pdm:Grade Type: Premium
    pdm:Engine Family: V6, Small Block
    pdm:Manufacture: Chevrolet
    pdm:Hardness: 23
    pdm:Length: 5.970 IN
    pdm:Part Description: Engine Oil Pump Intermediate Shaft
    pdm:Length: 151.6 MM
    pdm:internal_sku: FED224-6146E
    pdm:Shaft Diameter: 0.483 IN
    pdm:Note 2: Heavy Duty; w/Integral steel guide
    pdm:Shaft Diameter: 12.24 MM
    pdm:line_code: FED
    pdm:Hardunit: RC
    pdm:Shaft Material: Stress Proof Steel
    pdm:Prop 65 Label (Yes/No): No
    $15.89
  • FED235NP20 Cast Piston Set

    Sealed Power

    Part #: 235NP20

    FED235NP20 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.8750 IN
    pdm:Bore Diameter: 98.4 MM
    pdm:Compression Height: 1.780 IN
    pdm:Head Illustration: 189
    pdm:Head Type: Flat Head w/4 valve reliefs
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.020 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9278 IN
    pdm:Piston Pin Outside Diameter: 23.566 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED235NP20
    pdm:Grade Type: Premium
    pdm:Piston Head Type: Flat
    pdm:Prop 65 Label (Yes/No): No
    $27.99
  • FED235NP30 Cast Piston Set

    Sealed Power

    Part #: 235NP30

    FED235NP30 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.8750 IN
    pdm:Bore Diameter: 98.4 MM
    pdm:Compression Height: 1.780 IN
    pdm:Head Illustration: 189
    pdm:Head Type: Flat Head w/4 valve reliefs
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.030 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9278 IN
    pdm:Piston Pin Outside Diameter: 23.566 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED235NP30
    $21.89
  • FED235NP40 Cast Piston Set

    Sealed Power

    Part #: 235NP40

    FED235NP40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.8750 IN
    pdm:Bore Diameter: 98.4 MM
    pdm:Compression Height: 1.780 IN
    pdm:Head Illustration: 189
    pdm:Head Type: Flat Head w/4 valve reliefs
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9278 IN
    pdm:Piston Pin Outside Diameter: 23.566 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED235NP40
    pdm:Grade Type: Premium
    pdm:Piston Head Type: Flat
    pdm:Prop 65 Label (Yes/No): No
    $27.99
  • FED235NP60 Cast Piston Set

    Sealed Power

    Part #: 235NP60

    FED235NP60 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 3.8750 IN
    pdm:Bore Diameter: 98.4 MM
    pdm:Compression Height: 1.780 IN
    pdm:Head Illustration: 189
    pdm:Head Type: Flat Head w/4 valve reliefs
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.060 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9278 IN
    pdm:Piston Pin Outside Diameter: 23.566 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED235NP60
    pdm:Grade Type: Premium
    pdm:Piston Head Type: Flat
    pdm:Prop 65 Label (Yes/No): No
    $27.99
  • FED2380CP Con Rod Bearing Pair

    Sealed Power

    Part #: 2380CP

    FED2380CP Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Design Feature 1: Standard Size
    pdm:internal_sku: FED2380CP
    pdm:Grade Type: Premium
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:line_code: FED
    pdm:Prop 65 Label (Yes/No): No
    pdm:Oil Clearance Max: 0.0710 MM
    pdm:Standard Shaft Max: 2.1240 IN
    pdm:Housing Bore Max: 56.8910 MM
    pdm:Oil Clearance Min: 0.0130 MM
    pdm:Oil Clearance Min: 0.0005 IN
    pdm:Housing Bore Max: 2.2398 IN
    pdm:Housing Bore Min: 56.8710 MM
    pdm:Oil Clearance Max: 0.0028 IN
    pdm:Overall Length Max: 0.8100 IN
    pdm:Housing Bore Min: 2.2390 IN
    pdm:Overall Length Max: 20.5700 MM
    pdm:Standard Shaft Max: 53.9500 MM
    pdm:Standard Shaft Min: 2.1232 IN
    pdm:Wall Thickness Max: 1.4580 MM
    pdm:Standard Shaft Min: 53.9290 MM
    pdm:Wall Thickness Max: 0.0574 IN
    $9.05
  • FED2385CP Con Rod Bearing Pair

    Sealed Power

    Part #: 2385CP

    FED2385CP Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Design Feature 1: Standard Size
    pdm:Grade Type: Premium
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:internal_sku: FED2385CP
    pdm:line_code: FED
    pdm:Prop 65 Label (Yes/No): No
    pdm:Housing Bore Max: 1.9252 IN
    pdm:Housing Bore Min: 48.8870 MM
    pdm:Oil Clearance Max: 0.0810 MM
    pdm:Housing Bore Min: 1.9247 IN
    pdm:Housing Bore Max: 48.9000 MM
    pdm:Oil Clearance Min: 0.0180 MM
    pdm:Oil Clearance Max: 0.0032 IN
    pdm:Overall Length Max: 17.2500 MM
    pdm:Overall Length Max: 0.6790 IN
    pdm:Oil Clearance Min: 0.0007 IN
    pdm:Standard Shaft Max: 45.7200 MM
    pdm:Standard Shaft Max: 1.8000 IN
    pdm:Wall Thickness Max: 0.0620 IN
    pdm:Standard Shaft Min: 1.7990 IN
    pdm:Wall Thickness Max: 1.5750 MM
    pdm:Standard Shaft Min: 45.6950 MM
    $28.67
  • FED2410CP Con Rod Bearing Pair

    Sealed Power

    Part #: 2410CP

    FED2410CP Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Grade Type: Premium
    pdm:Design Feature 1: Standard Size
    pdm:line_code: FED
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:internal_sku: FED2410CP
    pdm:Prop 65 Label (Yes/No): No
    pdm:Overall Length Max: 0.9750 IN
    pdm:Standard Shaft Max: 2.3740 IN
    pdm:Standard Shaft Max: 60.3000 MM
    pdm:Standard Shaft Min: 60.2740 MM
    pdm:Housing Bore Min: 63.4870 MM
    pdm:Standard Shaft Min: 2.3730 IN
    pdm:Oil Clearance Max: 0.0910 MM
    pdm:Housing Bore Max: 2.5000 IN
    pdm:Oil Clearance Min: 0.0011 IN
    pdm:Oil Clearance Min: 0.0280 MM
    pdm:Housing Bore Min: 2.4995 IN
    pdm:Oil Clearance Max: 0.0036 IN
    pdm:Housing Bore Max: 63.5000 MM
    pdm:Overall Length Max: 24.7700 MM
    pdm:Wall Thickness Max: 1.5800 MM
    pdm:Wall Thickness Max: 0.0622 IN
    $7.67

Why Buy Federal-Mogul Parts from Northern Auto Parts?


Choosing Federal-Mogul parts from Northern Auto Parts means you're investing in quality and reliability. Our extensive selection ensures you find the right parts for any vehicle, backed by Federal Mogul’s reputation for excellence. Trust Northern Auto Parts for your Federal Mogul needs and experience superior performance and durability, keeping your vehicle running smoothly and efficiently. With Northern Auto Parts, you get the right parts at the right time, every time.

Why Buy Vehicle Parts from Northern Auto Parts?

40+ Years Experience


Northern Auto Parts has been providing auto parts for all makes and models for over 40 years. We have everything you need to keep your car, truck, or SUV running in peak condition. For engine builders, Northern Auto Parts is one of the best online sources for kits.

Trusted Source for Name-Brand Parts


Northern Auto Parts is recognized by many as the best online source for rebuild components. We carry a wide variety of name-brand components, so you can find the exact parts you need to repair or replace any part of your vehicle. From engine components to exterior parts, we have a vast selection to choose from.

Competitive Pricing


We are committed to affordability without compromising on quality. Our prices provide the best value for your money, whether you’re an automotive technician or a DIY enthusiast.
