  • FED3230CP Con Rod Bearing Pair

    Sealed Power

    Part #: 3230CP

    FED3230CP Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Design Feature 1: Standard Size
    pdm:Grade Type: Premium
    pdm:line_code: FED
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:internal_sku: FED3230CP
    pdm:Prop 65 Label (Yes/No): No
    pdm:Housing Bore Min: 65.8040 MM
    pdm:Housing Bore Max: 2.5915 IN
    pdm:Housing Bore Max: 65.8240 MM
    pdm:Oil Clearance Max: 0.0025 IN
    pdm:Oil Clearance Min: 0.0130 MM
    pdm:Oil Clearance Max: 0.0640 MM
    pdm:Overall Length Max: 18.6400 MM
    pdm:Oil Clearance Min: 0.0005 IN
    pdm:Housing Bore Min: 2.5907 IN
    pdm:Overall Length Max: 0.7340 IN
    pdm:Standard Shaft Max: 61.9460 MM
    pdm:Standard Shaft Max: 2.4388 IN
    pdm:Standard Shaft Min: 61.9250 MM
    pdm:Wall Thickness Max: 1.9180 MM
    pdm:Standard Shaft Min: 2.4380 IN
    pdm:Wall Thickness Max: 0.0755 IN
    $6.97

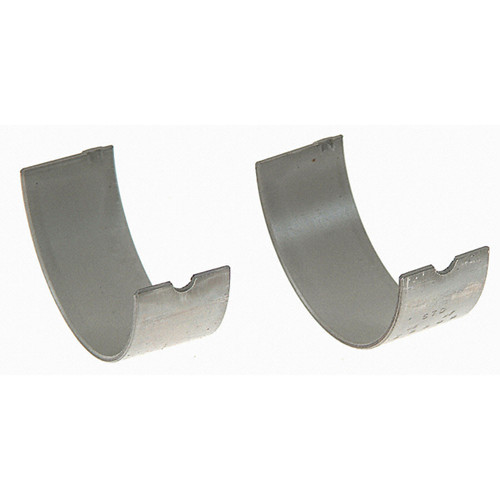

  • FED3310CPA Con Rod Bearing Pair

    Sealed Power

    Part #: 3310CPA

    FED3310CPA Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Design Feature 1: Standard Size
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:internal_sku: FED3310CPA
    pdm:line_code: FED
    pdm:Grade Type: Premium
    pdm:Prop 65 Label (Yes/No): No
    pdm:Housing Bore Min: 2.2080 IN
    pdm:Housing Bore Min: 56.0830 MM
    pdm:Oil Clearance Min: 0.0130 MM
    pdm:Housing Bore Max: 2.2085 IN
    pdm:Oil Clearance Max: 0.0027 IN
    pdm:Oil Clearance Max: 0.0690 MM
    pdm:Housing Bore Max: 56.0960 MM
    pdm:Oil Clearance Min: 0.0005 IN
    pdm:Overall Length Max: 0.8370 IN
    pdm:Standard Shaft Max: 53.2260 MM
    pdm:Standard Shaft Max: 2.0955 IN
    pdm:Standard Shaft Min: 53.2080 MM
    pdm:Standard Shaft Min: 2.0948 IN
    pdm:Wall Thickness Max: 1.4220 MM
    pdm:Wall Thickness Max: 0.0560 IN
    pdm:Overall Length Max: 21.2600 MM
    $7.15
  • FED3320CP Con Rod Bearing Pair

    Sealed Power

    Part #: 3320CP

    FED3320CP Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Design Feature 1: Standard Size
    pdm:Grade Type: Premium
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:line_code: FED
    pdm:internal_sku: FED3320CP
    pdm:Prop 65 Label (Yes/No): No
    pdm:Housing Bore Min: 60.3000 MM
    pdm:Housing Bore Min: 2.3740 IN
    pdm:Oil Clearance Max: 0.0027 IN
    pdm:Standard Shaft Max: 57.1500 MM
    pdm:Overall Length Max: 0.8260 IN
    pdm:Housing Bore Max: 60.3120 MM
    pdm:Oil Clearance Min: 0.0130 MM
    pdm:Standard Shaft Max: 2.2500 IN
    pdm:Oil Clearance Max: 0.0690 MM
    pdm:Wall Thickness Max: 1.5720 MM
    pdm:Overall Length Max: 20.9800 MM
    pdm:Standard Shaft Min: 2.2490 IN
    pdm:Housing Bore Max: 2.3745 IN
    pdm:Oil Clearance Min: 0.0005 IN
    pdm:Wall Thickness Max: 0.0619 IN
    pdm:Standard Shaft Min: 57.1250 MM
    $10.28
  • FED3360CPA Con Rod Bearing Pair

    Sealed Power

    Part #: 3360CPA

    FED3360CPA Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Design Feature 1: Standard Size
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:Grade Type: Premium
    pdm:line_code: FED
    pdm:internal_sku: FED3360CPA
    pdm:Prop 65 Label (Yes/No): No
    pdm:Standard Shaft Max: 63.5000 MM
    pdm:Overall Length Max: 0.8660 IN
    pdm:Standard Shaft Min: 2.4992 IN
    pdm:Housing Bore Min: 67.3660 MM
    pdm:Standard Shaft Max: 2.5000 IN
    pdm:Housing Bore Max: 2.6530 IN
    pdm:Oil Clearance Min: 0.0005 IN
    pdm:Oil Clearance Min: 0.0130 MM
    pdm:Housing Bore Max: 67.3860 MM
    pdm:Standard Shaft Min: 63.4800 MM
    pdm:Overall Length Max: 22.0000 MM
    pdm:Housing Bore Min: 2.6522 IN
    pdm:Oil Clearance Max: 0.0610 MM
    pdm:Oil Clearance Max: 0.0024 IN
    pdm:Wall Thickness Max: 0.0762 IN
    pdm:Wall Thickness Max: 1.9350 MM
    $9.60
  • FED3380CPA Con Rod Bearing Pair

    Sealed Power

    Part #: 3380CPA

    FED3380CPA Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Design Feature 1: Standard Size
    pdm:Grade Type: Premium
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:internal_sku: FED3380CPA
    pdm:line_code: FED
    pdm:Prop 65 Label (Yes/No): No
    pdm:Housing Bore Max: 61.6530 MM
    pdm:Housing Bore Min: 2.4265 IN
    pdm:Housing Bore Min: 61.6330 MM
    pdm:Housing Bore Max: 2.4273 IN
    pdm:Oil Clearance Max: 0.0026 IN
    pdm:Overall Length Max: 0.7260 IN
    pdm:Standard Shaft Max: 58.7020 MM
    pdm:Oil Clearance Min: 0.0130 MM
    pdm:Oil Clearance Min: 0.0005 IN
    pdm:Standard Shaft Min: 58.6820 MM
    pdm:Overall Length Max: 18.4400 MM
    pdm:Oil Clearance Max: 0.0660 MM
    pdm:Standard Shaft Min: 2.3103 IN
    pdm:Standard Shaft Max: 2.3111 IN
    pdm:Wall Thickness Max: 1.4660 MM
    pdm:Wall Thickness Max: 0.0577 IN
    $6.45
  • FED3400CP Con Rod Bearing Pair

    Sealed Power

    Part #: 3400CP

    FED3400CP Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Design Feature 1: Standard Size
    pdm:Grade Type: Premium
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:line_code: FED
    pdm:internal_sku: FED3400CP
    pdm:Prop 65 Label (Yes/No): No
    pdm:Housing Bore Max: 61.8970 MM
    pdm:Oil Clearance Min: 0.0130 MM
    pdm:Overall Length Max: 18.4400 MM
    pdm:Housing Bore Min: 61.8770 MM
    pdm:Standard Shaft Max: 2.3111 IN
    pdm:Housing Bore Max: 2.4369 IN
    pdm:Overall Length Max: 0.7260 IN
    pdm:Standard Shaft Min: 2.3103 IN
    pdm:Oil Clearance Max: 0.0026 IN
    pdm:Housing Bore Min: 2.4361 IN
    pdm:Oil Clearance Min: 0.0005 IN
    pdm:Oil Clearance Max: 0.0660 MM
    pdm:Standard Shaft Max: 58.7020 MM
    pdm:Standard Shaft Min: 58.6820 MM
    pdm:Wall Thickness Max: 0.0625 IN
    pdm:Wall Thickness Max: 1.5880 MM
    $7.06
  • FED3545A Con Rod Bearing Pair

    Sealed Power

    Part #: 3545A

    FED3545A Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Grade Type: Premium
    pdm:Design Feature 1: Standard Size
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:line_code: FED
    pdm:internal_sku: FED3545A
    pdm:Prop 65 Label (Yes/No): No
    pdm:Overall Length Max: 0.8000 IN
    pdm:Oil Clearance Max: 0.0660 MM
    pdm:Housing Bore Min: 55.1690 MM
    pdm:Standard Shaft Max: 2.0472 IN
    pdm:Housing Bore Max: 55.1890 MM
    pdm:Housing Bore Max: 2.1728 IN
    pdm:Standard Shaft Min: 2.0465 IN
    pdm:Oil Clearance Max: 0.0026 IN
    pdm:Oil Clearance Min: 0.0005 IN
    pdm:Oil Clearance Min: 0.0130 MM
    pdm:Standard Shaft Max: 51.9990 MM
    pdm:Standard Shaft Min: 51.9810 MM
    pdm:Overall Length Max: 20.3200 MM
    pdm:Housing Bore Min: 2.1720 IN
    pdm:Wall Thickness Max: 0.0624 IN
    pdm:Wall Thickness Max: 1.5850 MM
    $7.55
  • FED362NP40 Cast Piston Set

    Sealed Power

    Part #: 362NP40

    FED362NP40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.0800 IN
    pdm:Bore Diameter: 103.6 MM
    pdm:Compression Height: 1.581 IN
    pdm:Head Illustration: 29
    pdm:Head Type: Recessed Head .190 deep x 3.640 dia. w/4 valve reliefs - 9.0:1 C.R.
    pdm:Minimum Clearance: 0.001 @ 2.440 from top of head
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Pin Type: P
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.931 IN
    pdm:Piston Pin Outside Diameter: 23.647 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:Weight W Pin Gram: 00765.+/- 00.
    pdm:line_code: FED
    pdm:internal_sku: FED362NP40
    pdm:Piston Head Type: Recessed
    pdm:Grade Type: Premium
    pdm:Prop 65 Label (Yes/No): No
    $45.80
  • FED368P40 Cast Piston Set

    Sealed Power

    Part #: 368P40

    FED368P40 Cast Piston Set

    pdm:Assembly Lubricant Included: No
    pdm:Bore Diameter: 4.1875 IN
    pdm:Bore Diameter: 106.4 MM
    pdm:Compression Height: 1.947 IN
    pdm:Head Illustration: 28
    pdm:Head Type: Recessed Head .090 deep x 3.500 dia. - 9.9:1 C.R.
    pdm:Minimum Clearance: 0.0015 @ bottom of skirt
    pdm:Oil Ring Thickness: 0.1875 IN
    pdm:Oversized: Yes
    pdm:Oversized Amount: 0.040 IN
    pdm:Part Description: Engine Piston
    pdm:Pin Offset (Inch): 0.06
    pdm:Pin Offset (MM): 1.524
    pdm:Piston Material: Cast Aluminum
    pdm:Piston Pin Outside Diameter: 0.9997 IN
    pdm:Piston Pin Outside Diameter: 25.392 MM
    pdm:Second Compression Ring Thickness: 0.0781 IN
    pdm:Top Compression Ring Thickness: 0.0781 IN
    pdm:line_code: FED
    pdm:internal_sku: FED368P40
    pdm:Grade Type: Premium
    pdm:Piston Head Type: Recessed
    pdm:Prop 65 Label (Yes/No): No
    $70.57

  • Federal Mogul

    Part #: 3695RA20

    FED3695RA20 3695RA20

    Engine Make: Federal Mogul
    $8.35
  • FED3760A Con Rod Bearing Pair

    Sealed Power

    Part #: 3760A

    FED3760A Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Grade Type: Premium
    pdm:Design Feature 1: Standard Size
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:internal_sku: FED3760A
    pdm:line_code: FED
    pdm:Prop 65 Label (Yes/No): No
    pdm:Housing Bore Max: 2.3745 IN
    pdm:Oil Clearance Max: 0.0030 IN
    pdm:Housing Bore Max: 60.3120 MM
    pdm:Housing Bore Min: 60.3000 MM
    pdm:Housing Bore Min: 2.3740 IN
    pdm:Oil Clearance Min: 0.0007 IN
    pdm:Oil Clearance Max: 0.0760 MM
    pdm:Oil Clearance Min: 0.0180 MM
    pdm:Overall Length Max: 0.7210 IN
    pdm:Standard Shaft Max: 2.2495 IN
    pdm:Standard Shaft Max: 57.1370 MM
    pdm:Overall Length Max: 18.3100 MM
    pdm:Standard Shaft Min: 57.1170 MM
    pdm:Standard Shaft Min: 2.2487 IN
    pdm:Wall Thickness Max: 1.5720 MM
    pdm:Wall Thickness Max: 0.0619 IN
    $6.70
  • FED3810CP Con Rod Bearing Pair

    Sealed Power

    Part #: 3810CP

    FED3810CP Con Rod Bearing Pair

    Engine Make: Federal Mogul
    pdm:Design Feature 1: Standard Size
    pdm:Grade Type: Premium
    pdm:Part Description: Engine Connecting Rod Bearing
    pdm:line_code: FED
    pdm:internal_sku: FED3810CP
    pdm:Prop 65 Label (Yes/No): No
    pdm:Housing Bore Min: 68.3390 MM
    pdm:Oil Clearance Min: 0.0011 IN
    pdm:Housing Bore Max: 68.3510 MM
    pdm:Oil Clearance Max: 0.0910 MM
    pdm:Housing Bore Min: 2.6905 IN
    pdm:Housing Bore Max: 2.6910 IN
    pdm:Oil Clearance Max: 0.0036 IN
    pdm:Overall Length Max: 22.5600 MM
    pdm:Oil Clearance Min: 0.0280 MM
    pdm:Standard Shaft Max: 2.4990 IN
    pdm:Standard Shaft Max: 63.4750 MM
    pdm:Overall Length Max: 0.8880 IN
    pdm:Standard Shaft Min: 63.4490 MM
    pdm:Wall Thickness Max: 2.4180 MM
    pdm:Wall Thickness Max: 0.0952 IN
    pdm:Standard Shaft Min: 2.4980 IN
    $15.81
