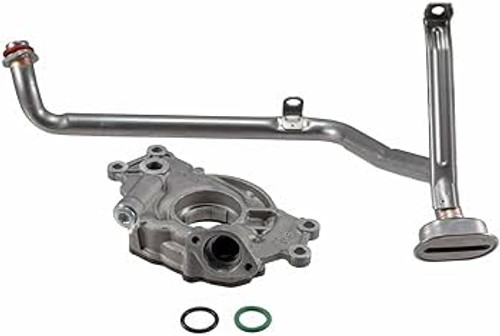

MELM295HV Oil Pump

Melling

    No reviews yet Write a Review
    SKU:
    M295HV
    MPN:
    M295HV
    This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
    $152.01
    MELM295HV Oil Pump

    MELM295HV Oil Pump

    Melling

      No reviews yet Write a Review
      SKU:
      M295HV
      MPN:
      M295HV
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $152.01
      $152.01
      Upgrade Options:

      Description

      The M295hv is primarily compatible with LS-series engines  as a Hi Volume alternative to the stock pump

      • Engine Families: Gen III and Gen IV LS and Vortec engines.

      • Displacements: 4.8L, 5.3L, 5.7L, 6.0L, and 6.2L V8.

      • Specific Engine Codes:

        • Gen III: LS1, LS6, LR4, LM7, L59, LM4, L33, LQ4, LQ9.

        • Gen IV: LS2, LS3, LY2, L20, LH8, LH9, L98, L96, LY6, L9H, L92.

      Made in USA. Melling high volume oil pumps increase the amount of oil flow by an average of 20% through the engine improving oil pressure at idle providing dependable performance every time in every application. Every Melling high volume oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling high volume oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. High volume gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

      • Precision engineered for optimum fit and function
      • Manufactured from high quality materials for consistent durable wear
      • Designed for long-life and worry-free performance
      • Meets or exceeds original equipment specifications

      Extra Information

      Brand:
      Melling
      Engine Make:
      Melling Engine Parts
      Grade Type:
      Improved Design
      Height:
      118.0 MM
      Height:
      4.66 IN
      Additional Volume Over Stock Percentage:
      18%
      Alternate Pressure Springs Included:
      No
      Oil Pump Pressure Type:
      High Pressure
      Drive Type:
      Crankshaft
      Gasket Or Seal Included:
      Yes
      Mounting Hole Diameter:
      0.375 IN
      Housing Material:
      Cast Aluminum
      Width:
      8.0 IN
      Mounting Hole Diameter:
      10.0 MM
      Mounting Hole Quantity:
      4
      Pickup Tube Diameter:
      22.0 MM
      Oil Pump Type:
      Rotary
      Oil Pump Volume Type:
      High Volume
      line code:
      MEL
      Pickup Tube Diameter:
      0.875 IN
      internal sku:
      MELM295HV
      Width:
      203.0 MM
      Adjustable Bypass Pressure:
      No
      Drive Shaft Included:
      No
      Gears Included:
      Yes
      Finish:
      Rust Preventative
      Guide Included:
      No
      Cotter Pin Included:
      No
      Inlet Size (in):
      0.875
      Cover Material:
      Aluminum
      Intermediate Shaft Included:
      No
      Governor Spinner Included:
      No
      Bolts Included:
      No
      Inlet Size (mm):
      22.00
      Bushing Included:
      No
      O-Ring Included:
      Yes
      Pump Cover Included:
      Yes
      Pickup Screen Included:
      No
      Nylon Bushing Included:
      No
      Shaft Material:
      Not Applicable
      Rotor Material:
      Powdered Metal
      Spacer Included:
      No
      Washers Included:
      No
      Timing Cover Included:
      No
