Description

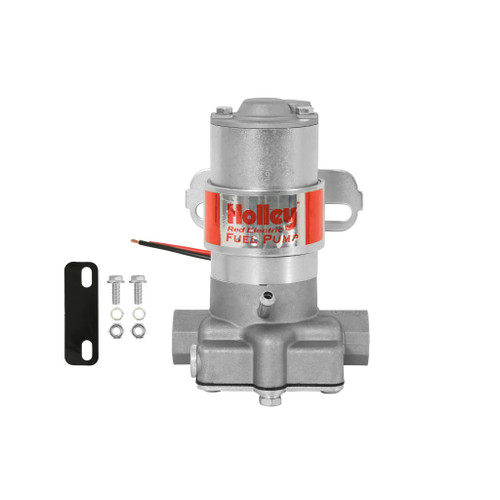

Hi Performance Electric (RED) Fuel Pump 12-801-1 Holley
The world famous Red fuel pumps are the most recognized performance pumps of all times. Their time proven rotor/vane design is known to get the job done in an affordable package.
Features:
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow
- Maximum pressure is 7 psi
- Motor draws 2 amps current
- Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
- Constant fuel flow with no pulsation
- Improved design for street/strip applications
- Distinctive “Red” logo
- Flows 97 GPH (free flow)
- Flows 71 GPH at 4 psi
- regulator is not required
- Has externally accessible pressure relief valve (max 7 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 2.88 lbs
- Not designed or recommended for use with fuel injection systems
- Includes mounting bracket
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
