EDL5025 SBF E-Street Heads w/ 2.02 valves

Edelbrock

    No reviews yet Write a Review
    SKU:
    5025
    MPN:
    5025
    This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
    $1,332.95
    EDL5025 SBF E-Street Heads w/ 2.02 valves

    EDL5025 SBF E-Street Heads w/ 2.02 valves

    Edelbrock

      No reviews yet Write a Review
      SKU:
      5025
      MPN:
      5025
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $1,332.95
      $1,332.95
      Upgrade Options:

      Description

      The Edelbrock #5025 E-Street cylinder heads are designed for Ford 289-351 W V8 applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

      Cylinder Head Info:
      - 60cc Combustion Chamber Volume
      - 170cc Intake Runner Volume
      - 60cc Exhaust Runner Volume
      - Intake Valve Diameter of 2.02"
      - Exhaust Valve Diameter of 1.60"
      - Manganese Bronze Valve Guides
      - Deck Thickness of 5/8"
      - 1.460" Valve Spring Diameter
      - Valve Spring Maximum Lift of .550"
      - 3/8" Rocker Stud with Guide Plate
      - Hardened Steel Guide Plate
      - Diameter 5/16" Pushrod
      - Stock Exhaust Port Location
      - 14mm x 3/4 Reach Spark Plug Fitment

      Head Bolt Washers #9680

      Edelbrock #9680 Head Bolt Bushings with Integral Washers must be used on 289-302 S/B Ford Engines with 7/16" Head Bolts. Complete Set of 20 High Quality Head Bolt Bushings. Use with Edelbrock Head Bolt Kit #8552 or Stock 7/16" Head Bolts.

      Videos

      Extra Information

      Brand:
      Edelbrock
      Engine Make:
      Edelbrock
      CNC Ported:
      No
      Camshaft Type:
      Flat Tappet
      Guide Material:
      Manganese Bronze
      Family:
      E-Street
      EGR Port:
      No
      Construction Type:
      Complete
      Deck Thickness:
      0.625 IN
      Grade Type:
      Performance
      Exhaust Port Location:
      Standard
      Exhaust Valve Diameter:
      1.60 IN
      Intake Runner Volume:
      170 CCM
      Guide Plate Material:
      Hardened Steel
      Exhaust Runner Volume:
      60
      Horsepower:
      200-400
      Guide Plates Included:
      Yes
      Combustion Chamber Volume:
      60 CCM
      Intake Valve Diameter:
      2.02 IN
      Material:
      Aluminum
      Push Rod Diameter:
      (Suggested) 0.3125 IN
      Quantity:
      Set of 2
      Retainer Included:
      Yes
      RGL:
      WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
      Seat Angle:
      Exhaust 45 deg/Intake 45 DD
      Rocker Arm Stud Diameter:
      0.375 IN
      Valve Angle:
      12 DD
      Series:
      E-Street
      Valve Spring Maximum Lift:
      0.550 IN
      Seat Material:
      Ductile Iron
      line code:
      EDL
      Valve Spring Diameter:
      1.46 IN
      Valve Stem Diameter:
      0.341 IN
      Valve Springs Included:
      Yes
      internal sku:
      EDL5025
      Deck Height:
      8.2 IN
      Assembled:
      Yes
      Rocker Arms Included:
      No
      Rocker Arm Studs/Bolts Included:
      Yes
      Cylinder Head Gasket Included:
      No
      Valve Lock Material:
      Chromoly Steel
      Mounting Hardware Included:
      No
      Valve Lock Material:
      Steel
      Valve Spring Retainers Included:
      Yes
      Valve Cover Gasket Included:
      No
      Valve Seals Included:
      Yes
      Valve Locks Included:
      Yes
      Valves Included:
      Yes
      Head Casting Number:
      6025P

      Related Products

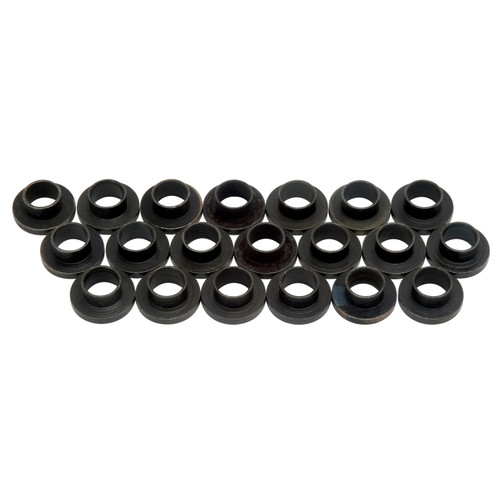

      EDL9680
