EDL5023 Small-Block Ford E-Street Cylinder Heads 1.90 valve sold as Pair

Edelbrock

    No reviews yet Write a Review
    SKU:
    5023
    MPN:
    5023
    This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
    $1,479.95
    EDL5023 Small-Block Ford E-Street Cylinder Heads 1.90 valve sold as Pair

    EDL5023 Small-Block Ford E-Street Cylinder Heads 1.90 valve sold as Pair

    Edelbrock

      No reviews yet Write a Review
      SKU:
      5023
      MPN:
      5023
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $1,479.95
      $1,479.95
      Upgrade Options:

      Description

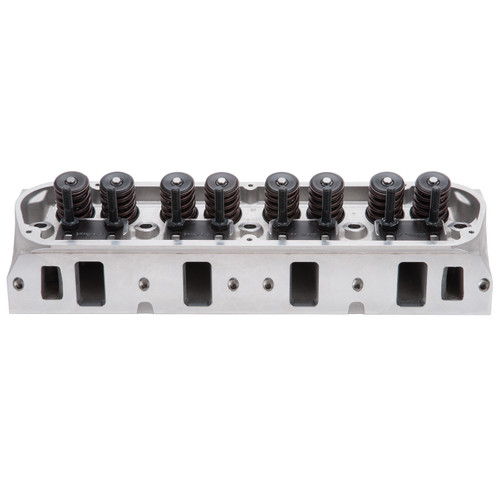

      The Edelbrock #5023 E-Street cylinder heads are designed for Ford 289-351 W flat tappet V8 applications.

      The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

      Intake Valve Diameter 1.90 in
      Intake Runner Volume 170 cc
      Push Rod Diameter (Suggested) 0.3125 in
      Rocker Stud Diameter 0.375 in
      Valve Angle 12 Degree
      Valve Spring Diameter 1.46 in
      Valve Spring Maximum Lift 0.550 in
      Valve Stem Diameter 0.341 in

      Videos

      Extra Information

      Brand:
      Edelbrock
      Exhaust Valve Diameter:
      1.60 IN
      Combustion Chamber Volume:
      60 CCM
      Exhaust Runner Volume:
      60
      Family:
      E-Street
      Construction Type:
      Complete
      Deck Thickness:
      0.625 IN
      Camshaft Type:
      Flat Tappet
      CNC Ported:
      No
      Grade Type:
      Performance
      EGR Port:
      No
      Horsepower:
      200-400
      Intake Runner Volume:
      170 CCM
      Guide Plates Included:
      Yes
      Guide Material:
      Manganese Bronze
      Intake Valve Diameter:
      1.90 IN
      Retainer Included:
      Yes
      Guide Plate Material:
      Hardened Steel
      Seat Material:
      Ductile Iron
      Rocker Arm Stud Diameter:
      0.375 IN
      Quantity:
      Set of 2
      Push Rod Diameter:
      (Suggested) 0.3125 IN
      Valve Angle:
      12 DD
      Material:
      Aluminum
      Seat Angle:
      Exhaust 45 deg/Intake 45 DD
      Valve Springs Included:
      Yes
      Valve Spring Maximum Lift:
      0.550 IN
      Valve Stem Diameter:
      0.341 IN
      internal sku:
      EDL5023
      line code:
      EDL
      Valve Spring Diameter:
      1.46 IN
      Exhaust Port Location:
      Standard
      RGL:
      WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
      Series:
      E-Street
      Cylinder Head Gasket Included:
      No
      Deck Height:
      9.5 IN
      Assembled:
      Yes
      Valve Lock Material:
      Chromoly Steel
      Rocker Arms Included:
      No
      Valve Lock Material:
      Steel
      Rocker Arm Studs/Bolts Included:
      Yes
      Mounting Hardware Included:
      No
      Valve Locks Included:
      Yes
      Valve Seals Included:
      Yes
      Valve Cover Gasket Included:
      No
      Valve Spring Retainers Included:
      Yes
      Valves Included:
      Yes
      Head Casting Number:
      6025P
