    CMP12-423-8 XE 224/230 HRlrSBC

    CMP12-423-8 XE 224/230 HRlrSBC

    COMP Cams

      No reviews yet Write a Review
      SKU:
      12-423-8
      MPN:
      12-423-8
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $549.95
      $549.95
      Upgrade Options:

      Description

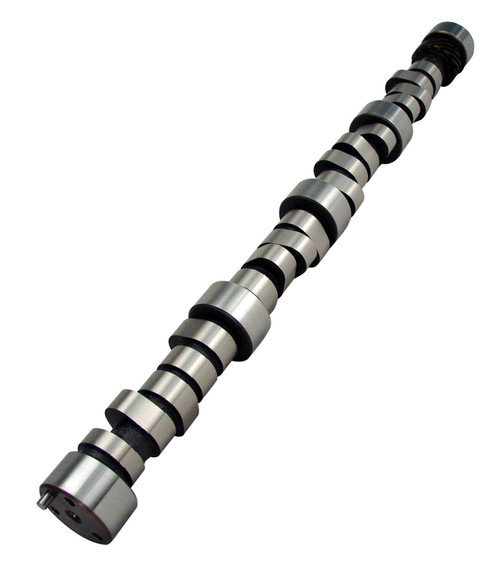

      Xtreme Energy 224/230 Hydraulic Roller Cam for Chevy Small Block. Very strong torque with excellent mileage and a smooth idle. Xtreme Energy Cams bridge the gap between Magnum street cams and race only cams. Xtreme Energy Cams provide increased torque, vacuum, response, and power while still providing quiet operation of the valve train and the durability required in daily driven vehicles. Xtreme Energy Benefits:Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve. More vacuum allows a step up in duration for greater performance. Best seller. excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-423-8 Grind #XR276HR-10. Duration @ 0.006": 276/ 282deg. Duration @ 0.050": 224/ 230deg. Max Lift w/ 1.5RR: .502" / .510". Lobe Separation: 110deg Lobe ID#'s: 3314 / 3315. Intake Centerline:106deg. Engine Type: Chevrolet 350 Small Block. Bore: 4.040". Stroke: 3.480". Displacement: 356ci. Compression: 9.25:1. Heads: Dart S/R. Intake: Edelbrock performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 427 ft/lbs @ 3700 RPM. Max Power: 373 HP @ 5200 RPM. Manifold Vacuum: 12" Hg @ 800 RPM & 14" Hg @ 1000 RPM w/ no load.

      Extra Information

      Brand:
      COMP Cams
      Engine Make:
      Competition Cams
      Advertised Exhaust Duration:
      282 DD
      Cam Type:
      Hydraulic Roller
      Grind Number:
      XR276HR
      Camshaft Gear Attachment:
      3-Bolt
      Lobe Separation:
      110 DD
      Assembly Lubricant Included:
      No
      Camshaft Material:
      Austempered Ductile Iron
      Basic Operating RPM Range:
      1,900-5,600 R3
      Intake Valve Lift:
      0.502 IN
      Intake Duration at .050 Inch Lift:
      224 DD
      Exhaust Valve Lift:
      0.51 IN
      Lifter Type:
      Hydraulic Roller
      Exhaust Duration at .050 inch Lift:
      230 DD
      Usage:
      Street/Performance
      Valve Springs Required:
      Yes
      Advertised Intake Duration:
      276 DD
      line code:
      CMP
      Lifters Included:
      No
      internal sku:
      CMP12-423-8
      C.A.R.B. E.O. Number:
      N/A
      Amazon ASIN:
      B000CIUABO
      C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?:
      Yes, but must meet tailpipe emission standards for year of vehicle.
      C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?:
      Yes, but must meet tailpipe emission standards for year of vehicle.
      C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?:
      Yes, but must meet tailpipe emission standards for year of vehicle.
      C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?:
      Yes, but must be a race/competition only vehicle.
      California Proposition 65:
      WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
      C.A.R.B. Exempt for On-Road Vehicles?:
      No
      C.A.R.B. Exemption Reason:
      N/A
      Engine Family:
      Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
      K-Kit Upgrade:
      K12-423-8
      Camshaft Series:
      Xtreme Energy
      Cam and Lifter Kit Upgrade:
      CL12-423-8
      SK-Kit Upgrade:
      SK12-423-8
      Title:
      Xtreme Energy 224/230 Hydraulic Roller Cam for Chevrolet Small Block
