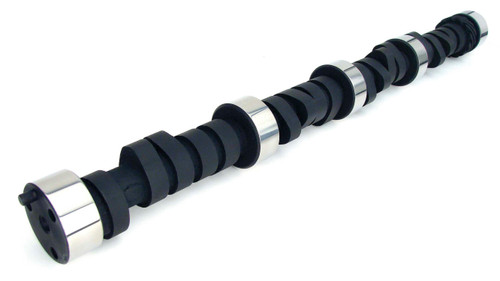

CMP12-234-2 XE 212/218 HFT SBC

COMP Cams

    No reviews yet Write a Review
    SKU:
    12-234-2
    MPN:
    12-234-2
    This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
    $226.95
    CMP12-234-2 XE 212/218 HFT SBC

    CMP12-234-2 XE 212/218 HFT SBC

    COMP Cams

      No reviews yet Write a Review
      SKU:
      12-234-2
      MPN:
      12-234-2
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $226.95
      $226.95
      Upgrade Options:

      Description

      Xtreme Energy 212/218 Hydraulic Flat Tappet Cam for Chevy Small Block. Very strong torque with excellent mileage and a smooth idle. Xtreme Energy Cams bridge the gap between Magnum street cams and race only cams. Xtreme Energy Cams provide increased torque, vacuum, response, and power while still providing quiet operation of the valve train and the durability required in daily driven vehicles. Xtreme Energy Benefits: Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve. More vacuum allows a step up in duration for greater performance. Best seller excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-234-2 Grind #XE256H-10. Duration @ 0.006": 256 / 268deg. Duration @ 0.050": 212/ 218deg. Max Lift w/ 1.5RR: .447" / .454". Lobe Separation: 110deg. Lobe ID#'s: 5441 / 5230. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block Bore:4.040" Stroke:3.480". Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R Intake: Edelbrock Performer Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers Max Torque: 411 ft/lbs @ 3600 RPM. Max Power: 330 HP @ 4700 RPM. Manifold Vacuum: 18.5" Hg @ 800 RPM & 20" Hg @ 1000 RPM w/ no load.

      Extra Information

      Brand:
      COMP Cams
      Engine Make:
      Competition Cams
      Advertised Exhaust Duration:
      268 DD
      Advertised Intake Duration:
      256 DD
      Assembly Lubricant Included:
      Yes
      Cam Type:
      Hydraulic Flat Tappet
      Basic Operating RPM Range:
      1,000-5,200 R3
      Camshaft Gear Attachment:
      3-Bolt
      Camshaft Material:
      Cast Iron
      Exhaust Valve Lift:
      0.454 IN
      Exhaust Duration at .050 inch Lift:
      218 DD
      Intake Valve Lift:
      0.447 IN
      Intake Duration at .050 Inch Lift:
      212 DD
      Grind Number:
      XE256H
      Lifter Type:
      Hydraulic Flat Tappet
      Lifters Included:
      No
      Usage:
      Street/Performance
      Valve Springs Required:
      Yes
      Lobe Separation:
      110 DD
      internal sku:
      CMP12-234-2
      line code:
      CMP
      C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?:
      Yes, but must meet tailpipe emission standards for year of vehicle.
      C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?:
      Yes, but must meet tailpipe emission standards for year of vehicle.
      Amazon ASIN:
      B000CIQ7AM
      C.A.R.B. E.O. Number:
      N/A
      California Proposition 65:
      WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
      C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?:
      Yes, but must be a race/competition only vehicle.
      C.A.R.B. Exemption Reason:
      N/A
      C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?:
      Yes, but must meet tailpipe emission standards for year of vehicle.
      C.A.R.B. Exempt for On-Road Vehicles?:
      No
      Camshaft Series:
      Xtreme Energy
      Cam and Lifter Kit Upgrade:
      CL12-234-2
      K-Kit Upgrade:
      K12-234-2
      Engine Family:
      Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
      Title:
      Xtreme Energy 212/218 Hydraulic Flat Cam for Chevrolet Small Block
      SK-Kit Upgrade:
      SK12-234-2
