EDL1916

Edelbrock

    No reviews yet Write a Review
    SKU:
    1916
    MPN:
    1916
    This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
    $495.16
    EDL1916

    EDL1916

    Edelbrock

      No reviews yet Write a Review
      SKU:
      1916
      MPN:
      1916
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $495.16
      $495.16
      Upgrade Options:

      Description

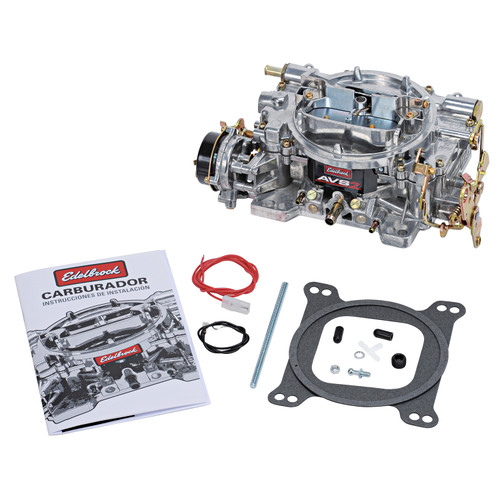

      Edelbrock's AVS2 Off-Road Carburetor #1916 with Electric Choke is a special 650 CFM version of the proven #1906 street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. Like AVS2 street carbs, the AVS2 Off-Road features an annular ring with eight evenly spaced orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 Off-Road booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low-to mid-RPM range without sacrificing top-end power. For superior fuel control over rough terrain, the AVS2 Off-Road features a new spring-loaded needle and seat along with a spring-loaded anti-syphon ball in the accelerator pump circuit to prevent fuel drip common with standard carbs in off-road situations. The AVS2 Off-Road is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 Off-Road carbs have the unique ability to hold a tune when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 Off-Road offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. AVS2 Off-Road Carburetors feature a two-piece design for easy tuning that allows you to make float level adjustments or replace internal components without draining the carburetor or remov ing it from the engine. The AVS2 Off-Road 650 CFM is available with a manual (#1915) or electric (#1916) choke and are manufactured by Edelbrock in the USA
    • Annular Flow Booster technology
    • Spring-loaded needle and seat for rough terrain
    • Spring-loaded anti-syphon ball eliminates drip
    • No power valves to blow out
    • Available with manual or electric choke

      • Extra Information

      Brand:
      Edelbrock
      Engine Make:
      S.B. International
      Barrel Quantity:
      4 Barrel
      Choke Type:
      Electric
      Booster Type:
      annular
      EGR Port:
      No
      Body Height:
      3.25 IN
      Condition:
      New
      Bore Diameter:
      Primary Bore 1.44; Secondary Bore 1.75 IN
      Maximum Flow Rating:
      650
      Material:
      Aluminum
      Flange Shape:
      Square
      Main Venturi Diameter:
      1.19 IN
      Finish:
      Satin
      Gasket Or Seal Included:
      Yes
      Spring Force:
      5" Hg (Orange)
      Primary Jet Diameter:
      0.104 IN
      RGL:
      WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
      Series:
      AVS2
      line code:
      EDL
      Metering Rod Size:
      .073 x .042 IN
      internal sku:
      EDL1916
      Secondary Jet Diameter:
      0.098 IN
