EDL1904

Edelbrock

    No reviews yet Write a Review
    SKU:
    1904
    MPN:
    1904
    This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
    $544.95

    EDL1904

    Edelbrock

      No reviews yet Write a Review
      SKU:
      1904
      MPN:
      1904
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $544.95
      $544.95
      Upgrade Options:

      Description

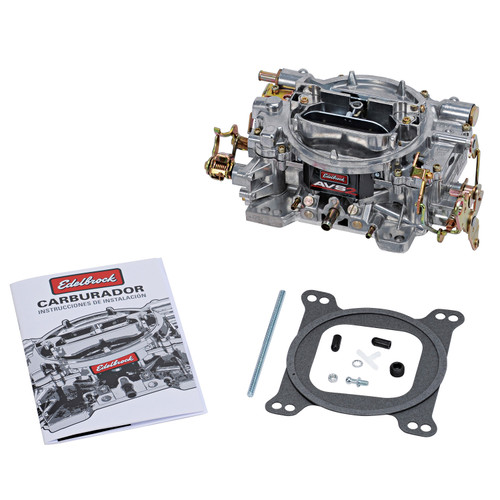

      Edelbrock's Annular Flow Booster technology brings superior fuel atomization to all dual-quad applications with the AVS2 500 CFM Carburetor #1904 that is specially calibrated for engines running two four-barrels. Annular Flow Boosters deliver near EFI-like drivability that you can feel as soon as you step on the gas. Fuel distribution is refined by eight equally spaced orifices in the booster rings that replace down-leg boosters which simply dump raw fuel into the venturi. Flat spots are completely eliminated, and throttle response in the low- to mid-RPM range is improved tremendously with no sacrificing of that top-end power that Edelbrock is known for. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to "hold a tune" when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. The AVS2 features a two-piece ease-of-tuning design that lets you make float level adjustments or replace internal components without draining the fuel from the carburetor or removing it from the engine. The AVS2 500 CFM carburetor is available with electric (#1903) or manual (#1904) in satin or EnduraShine finish. For small-cubic-inch single carburetor engines, order the specially calibrated AVS2 500 CFM #1901 (electric choke) or #1902 (manual choke). Like all Edelbrock carburetors, the AVS2 Series is designed, manufactured, assembled and calibrated by Edelbrock in the USA.

      Extra Information

      Brand:
      Edelbrock
      Engine Make:
      FEL-PRO Gaskets
      line code:
      EDL
      internal sku:
      EDL1904
      Booster Type:
      annular
      Bore Diameter:
      Primary Bore 1.44; Secondary Bore 1.6875 IN
      Condition:
      New
      Body Height:
      3.25 IN
      EGR Port:
      No
      Choke Type:
      Manual
      Finish:
      Satin
      Gasket Or Seal Included:
      Yes
      Flange Shape:
      Square
      Barrel Quantity:
      4 Barrel
      Secondary Jet Diameter:
      0.077 IN
      RGL:
      WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
      Main Venturi Diameter:
      1.19 IN
      Metering Rod Size:
      .070 x .052 IN
      Primary Jet Diameter:
      0.095 IN
      Material:
      Aluminum
      Spring Force:
      5" Hg (Orange)
      Maximum Flow Rating:
      500
      Series:
      AVS2
