HLY300-900BK

Holley

    No reviews yet Write a Review
    SKU:
    HLY300-900BK
    This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
    $859.95

    HLY300-900BK

    Holley

      No reviews yet Write a Review
      SKU:
      HLY300-900BK
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $859.95
      $859.95
      Upgrade Options:

      Description

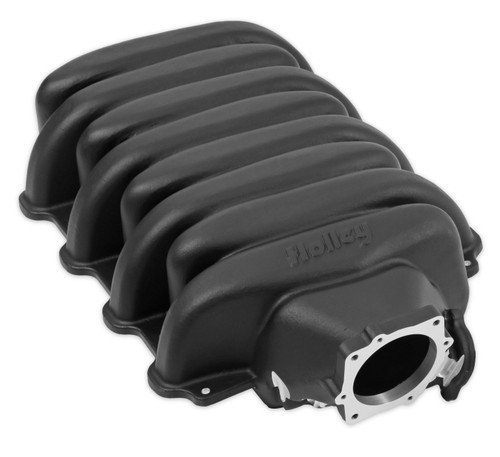

      Holley's low-profile intake manifold for Ford's 7.3L "Godzilla" engine, when paired with a 20-340/20-340BK oil pan and accessory drive kit, allows for easy installation into vintage vehicles, kit cars, and other space-restricted applications while retaining the factory hood. The design focus for this manifold was equal cylinder distribution and great street manners. This low-profile intake manifold offers a much cleaner alternative to the original plastic intake, provides anywhere from 2 to 3.5-inches of additional clearance, corrects the OE throttle body angle by 55 degrees, and increases the opening to 92mm. With three throttle body options, sturdy cast aluminum construction, a removable lower panel, and long runners to maintain the 7.3-liter's already substantial torque offering, this is a must-have for any "Godzilla" project. • Throttle Body Options: 1) 1986-1993 5.0L Mustang style drive-by-cable throttle bodies, 2) 2020-2023 7.3L drive-by-wire throttle body, and 3) 2020-2023 GT500 drive-by-wire throttle body (requires part #300-903) • Compatible Engine Components: 1) Factory accessories as well as Holley accessory drives (except for #20-380 and #97-409) and 2) Factory fuel rails and Holley #534-265 / #534-266 billet rails Included: Heater delete kit (# 97-425), hardware/o-ring kit (# 300-905), and NPT plugs for unused vacuum ports at rear of manifold (1x 1/8NPT, 1/4 NPT, and 3/8 NPT) Optional items: Heater line adapter (# 300-901), GT500 throttle body adapter (# 300-903), and O-ring replacement kit (# 300-906)
    • Patent-pending design optimizes hood clearance for engine swap applications with gains ranging from 2 to 3.5-inches
    • Robust cast aluminum construction that will withstand high-boost turbocharger and supercharger applications
    • Runner design optimizes horsepower and torque in upper RPM range, especially when engine is allowed to breathe with better components (throttle body, cam, etc.)
    • Three throttle body options to choose from: OE 7.3L DBW, Fox Body cable driven style, 2020-2023 GT500 (requires part # 300-903)
    • Perfect complement to Holley’s Godzilla Accessory Drive and Oiling System (20-320 / 20-320BK / 20-340 / 20-340BK) for fitment into tight engine bays
    • Corrects OE throttle body flange angle by 55 degrees for significantly improved clearance and intake pipe routing
    • Removable lower intake panel that can be removed for additional porting, nitrous, etc
    • Includes 3/8 NPT, 1/4 NPT and 1/8 NPT vacuum ports at rear of manifold
    • Includes throttle body gasket and all necessary o-rings and adapters to mount to the engine
    • Compatible with OE or Holley accesory drives and OE or Holley Fuel Rails
    • Extra Information

      Brand:
      Holley
      pdm:Basic Operating RPM Range:
      2000-6500 R3
      pdm:Brand:
      Holley
      pdm:Carburetor Studs Included:
      No
      pdm:Construction:
      Cast
      pdm:EGR Port:
      No
      pdm:Emission Code:
      3
      pdm:Engine:
      Ford 7.3L Godzilla
      pdm:Finish:
      Black Powdercoated
      pdm:Front Height:
      3.625 inch
      pdm:Front Maximum Height:
      3.625 IN
      pdm:Fuel Injectors Included:
      No
      pdm:Fuel Rail(s) Included:
      No
      pdm:Fuel System Type:
      EFI
      pdm:Gasket Or Seal Included:
      No
      pdm:Grade Type:
      Performance
      pdm:Intake Port Gasket(s) Included:
      No
      pdm:Manifold Type:
      Low-Profile
      pdm:Material:
      Aluminum
      pdm:Nitrous Bung(s) Included:
      No
      pdm:Plenum Finish:
      Black
      pdm:Product Type:
      Intake Manifold
      pdm:Rear Height:
      5.00 inch
      pdm:Rear Maximum Height:
      5 IN
      pdm:Removable Runners:
      No
      pdm:RPM Power Band:
      2000-6500
      pdm:Sale Category:
      Air and Fuel Delivery
      pdm:Single Or Dual Plane Type:
      Single Plane
      pdm:Throttle Body Included:
      No
      pdm:Throttle Bore:
      92mm
      pdm:Warning:
      California Proposition 65
      pdm:Warranty:
      Limited 90 Day
      pdm:line_code:
      HLY
      pdm:internal_sku:
      300-900BK
