HLY300-294

Holley

    No reviews yet Write a Review
    SKU:
    300-294
    MPN:
    300-294
    This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
    $631.95

    HLY300-294

    Holley

      No reviews yet Write a Review
      SKU:
      300-294
      MPN:
      300-294
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $631.95
      $631.95
      Upgrade Options:

      Description

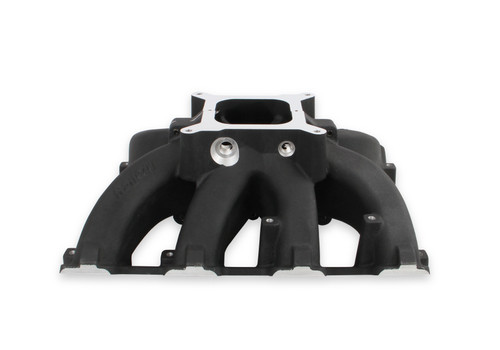

      The new Holley Single-Plane Race intake manifold is designed with maximum performance in mind. Featured is a two-piece split design that provides access for all levels of porting and modification. With shoulder bolt locators and O-ring seal, disassembly & reassembly is simple and precise. The manifold with AN-8 fuel rails fits GM LS Gen III engines with cathedral port heads and has a 4500 Dominator style carb flange for carburetors, EFI throttle bodies, or EFI throttle body elbows, and is configured with a LS MAP sensor port along with other NPT plenum vacuum or air-temp sensor ports. The LS Race single-plane intake manifold is designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacements, N/A or with power adders. The large volume 4500 plenum and optimized runners provide airflow potential for Hi-RPM engines with max power at 7500-8000+ RPM.
    • Maximum performance 4500 Dominator flange race design with hood clearance consideration
    • Lighter than other split race intakes
    • Split feature making porting efforts easy!
    • 33 to 50% the price of other split race intakes
    • Captured O-ring seals at head ports and plenum split
    • Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange
    • Two versions available: EFI type - Billet Fuel Rails and rail mounting hardware included, or Carbureted / Sniper EFI 4500 TBI style

      • Extra Information

      Brand:
      Holley
      Barrels:
      4
      Basic Operating RPM Range:
      2500-7500 R3
      Brand:
      Holley
      Carburetor Flange:
      Dominator/4500
      Carburetor Studs Included:
      No
      Category Filter:
      Intake Manifolds
      Clearance Category:
      Intake Manifolds
      Color:
      Silver
      Construction:
      Cast
      EGR Port:
      No
      Emission Code:
      3
      Engine:
      GM LS1/LS2/LS6
      Finish:
      Satin
      Flange Style:
      4500
      Front Height:
      7.32"
      Front Maximum Height:
      7.32 IN
      Fuel Injectors Included:
      No
      Fuel Rail(s) Included:
      No
      Fuel System Type:
      EFI
      Gasket Or Seal Included:
      No
      Grade Type:
      Performance
      Intake Port Gasket(s) Included:
      No
      Manifold Type:
      Split Single Plane
      Material:
      Aluminum
      Nitrous Bung(s) Included:
      No
      Plenum Finish:
      Natural
      Product Type:
      Intake Manifold
      Rear Height:
      7.32"
      Rear Maximum Height:
      7.32 IN
      Removable Runners:
      No
      RPM Power Band:
      2500-7000
      Sale Category:
      Air and Fuel Delivery
      Single Or Dual Plane Type:
      Single Plane
      Throttle Body Included:
      No
      Warning:
      California Proposition 65
      Warranty:
      Limited 90 Day
      line code:
      HLY
      internal sku:
      HLY300-294
