Holley Aluminum fuel cells come in a several variations for nearly every race application. They are offered in both flat bottom and rear sump variations to prevent fuel starvation under heavy acceleration. These fuel cells feature -10AN ORB fittings on the feed, return and vent ports, for high flow support and easy plumbing. They are made from 2.5mm thick 5052 TIG welded aluminum, with triangulated mounting tabs for added support and long-term reliability. The Holley aluminum fuel cells contain anti-slosh foam that is pre-cut to accept Holley fuel level senders. This foam is not E-85 compliant and should be removed if that fuel type is used. Compatible with the single and dual in-tank fuel pump modules.

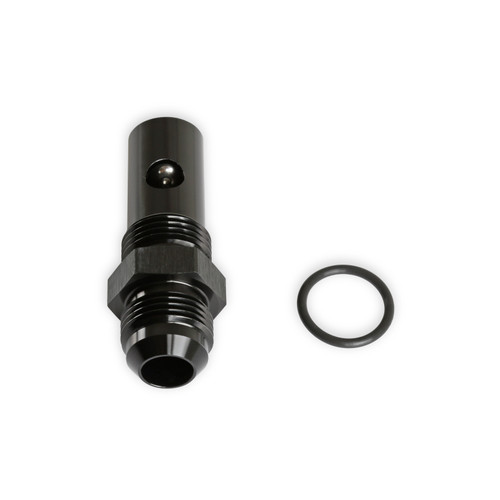

Helps minimize and/or prevent fuel from coming out the vent port in case of a rollover

During normal operating conditions, valve allows fuel cell to breathe out the vent port

10AN ORB port to 10AN male

Low-profile design

Main body made of 6061-T6 aluminum

Anodized fitting prevents galling of threads and corrosion protection

Stainless steel sphere ball and snap-ring

Comes apart easily to be cleaned/serviced

Pump gas and E85 compatible
