CMP12-238-2 XE 218/224 HFT SBC

COMP Cams

    No reviews yet Write a Review
    SKU:
    12-238-2
    MPN:
    12-238-2
    This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
    $226.95
    CMP12-238-2 XE 218/224 HFT SBC

    CMP12-238-2 XE 218/224 HFT SBC

    COMP Cams

      No reviews yet Write a Review
      SKU:
      12-238-2
      MPN:
      12-238-2
      This item is currently out of stock, but can still be ordered. We will contact you with an estimated delivery date once we receive your order.
      $226.95
      $226.95
      Upgrade Options:

      Description

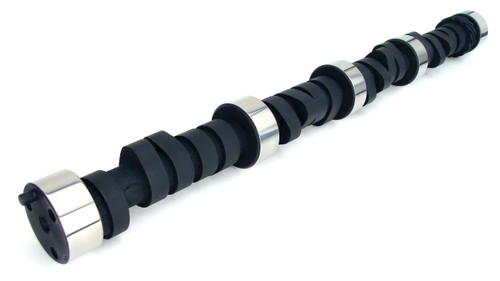

      Xtreme Energy 218/224 Hydraulic Flat Tappet Cam for Chevy Small Block. Very strong torque with excellent mileage and a smooth idle. Xtreme Energy Cams bridge the gap between Magnum street cams and race only cams. Xtreme Energy Cams provide increased torque, vacuum, response, and power while still providing quiet operation of the valve train and the durability required in daily driven vehicles. Xtreme Energy Benefits: Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve. More vacuum allows a step up in duration for greater performance. Best seller excellent all around performance in street carbureted applications.Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Dyno Results Camshaft Part #12-238-2 Grind #XE262H-10 Duration @ 0.006": 262 / 270deg. Duration @ 0.050": 218 / 224deg. Max Lift w/ 1.5RR: .462" / .469". Lobe Separation: 110deg. Lobe ID#'s: 5442 / 5201. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block. Bore: 4.040". Stroke: 3.480". Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R. Edelbrock Performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 415 ft lbs @ 3700 RPM. Max Power: 348 HP @ 5300 RPM. Manifold Vacuum: 17.5" Hg @ 800 RPM & 18.5" Hg @ 1000 RPM w/ no load.

      Extra Information

      Brand:
      COMP Cams
      Engine Make:
      Competition Cams
      Basic Operating RPM Range:
      1,300-5,600 R3
      Assembly Lubricant Included:
      Yes
      Exhaust Duration at .050 inch Lift:
      224 DD
      Camshaft Material:
      Cast Iron
      Advertised Exhaust Duration:
      270 DD
      Camshaft Gear Attachment:
      3-Bolt
      Grind Number:
      XE262H
      Advertised Intake Duration:
      262 DD
      Valve Springs Required:
      Yes
      Cam Type:
      Hydraulic Flat Tappet
      Lifters Included:
      No
      Exhaust Valve Lift:
      0.469 IN
      Usage:
      Street/Performance
      line code:
      CMP
      Intake Valve Lift:
      0.462 IN
      Lifter Type:
      Hydraulic Flat Tappet
      Lobe Separation:
      110 DD
      internal sku:
      CMP12-238-2
      Intake Duration at .050 Inch Lift:
      218 DD
      Amazon ASIN:
      B000CIS6B0
      C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?:
      Yes, but must be a race/competition only vehicle.
      C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?:
      Yes, but must meet tailpipe emission standards for year of vehicle.
      C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?:
      Yes, but must meet tailpipe emission standards for year of vehicle.
      C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?:
      Yes, but must meet tailpipe emission standards for year of vehicle.
      C.A.R.B. Exempt for On-Road Vehicles?:
      No
      Cam and Lifter Kit Upgrade:
      CL12-238-2
      C.A.R.B. E.O. Number:
      N/A
      C.A.R.B. Exemption Reason:
      N/A
      Camshaft Series:
      Xtreme Energy
      Engine Family:
      Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
      California Proposition 65:
      WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
      Title:
      Xtreme Energy 218/224 Hydraulic Flat Cam for Chevrolet Small Block
      SK-Kit Upgrade:
      SK12-238-2
      K-Kit Upgrade:
      K12-238-2
